HR mudguard H-PE 55.1060.17-IKK AS 124 SG, polypropylene

HR mudguard H-PE 55.1060.17-IKK AS 124 SG, polypropylene

181378030

⚖️ 6,2 kg

Login view prices

Description

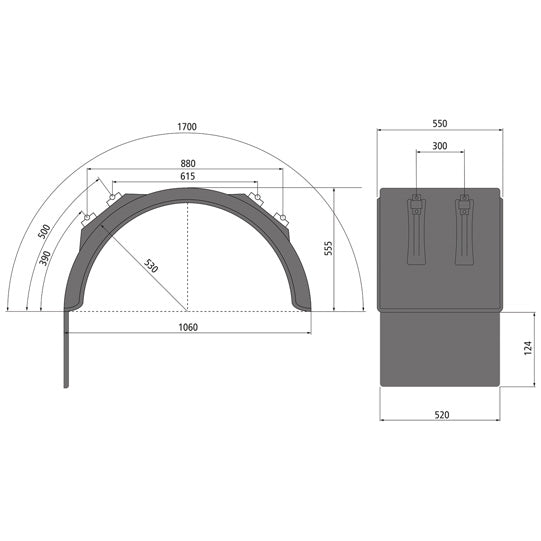

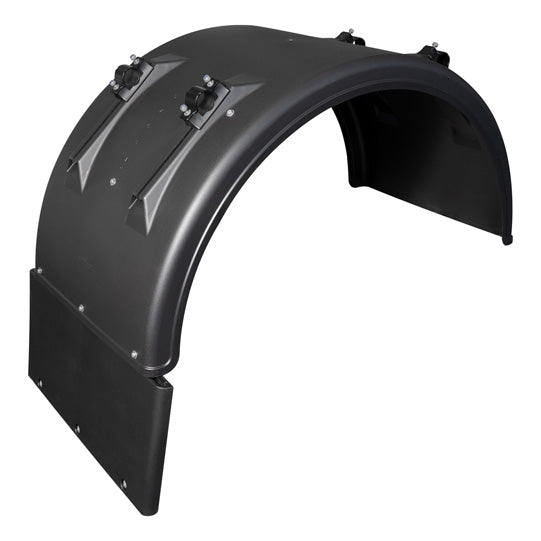

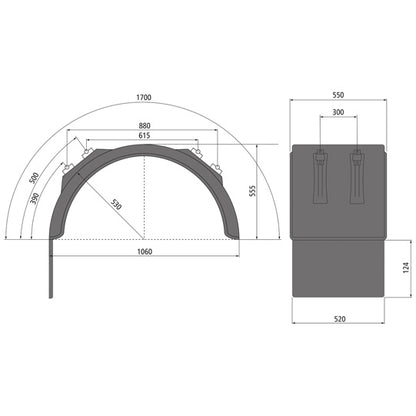

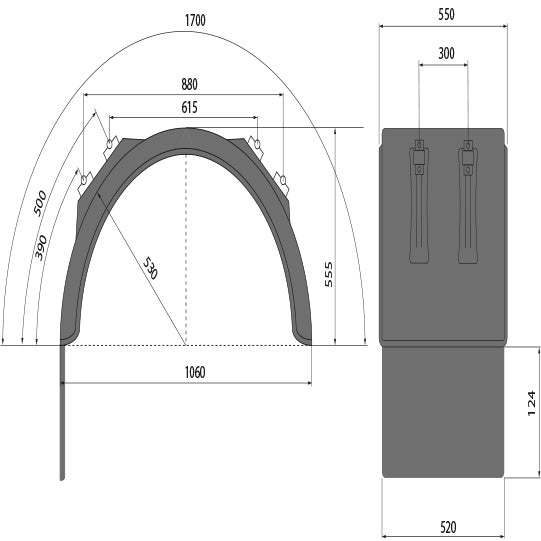

Rear mudguard H-PE 55.1060.17-IKK AS 124 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection molded, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for tube Ø 40 - 42 mm, 550 × 530 × 1700 × 1060 × 555 mm (w × r × l × s × h), splash guard 520 × 124 mm (w × h)

Notes

The scope of delivery does not include securing the locking lever. We recommend using a padlock.this item is not a stock item and is ordered on customer commission. The displayed price may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 1060.0
Console adjustment range 110.0
Height 555.0
Length 1700.0
Length splash guard 124.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 530.0
Splash guard Yes
Width 550.0
