HR mudguard H-PE 55.1060.17-IKK SG, PP-EPDM

HR mudguard H-PE 55.1060.17-IKK SG, PP-EPDM

181378016

⚖️ 4,8 kg

Login view prices

Description

Rear mudguard H-PE 55.1060.17-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 550 × 530 × 1700 × 1060 × 555 mm (w × r × l × s × h)

Notes

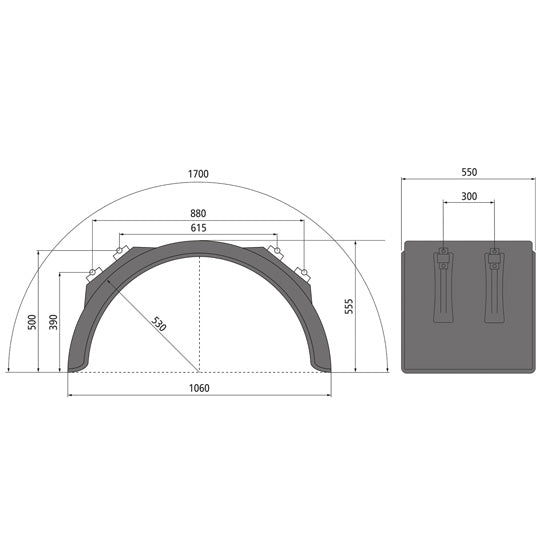

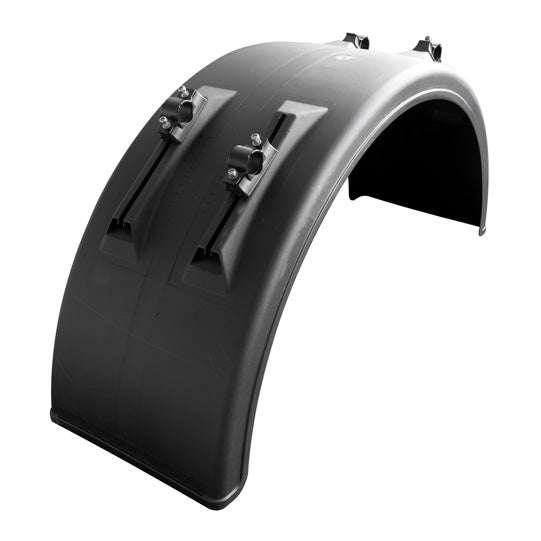

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1060.0
Console adjustment range 110.0
Height 555.0
Length 1650.0
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 530.0
Splash guard No
Width 550.0
