HR mudguard H-PE 65.1100.18-IKK SG, PP-EPDM

HR mudguard H-PE 65.1100.18-IKK SG, PP-EPDM

181378018

⚖️ 6,2 kg

Login view prices

Description

Rear mudguard H-PE 65.1100.18-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 650 × 570 × 1800 × 1140 × 570 mm (w × r × l × s × h)

Notes

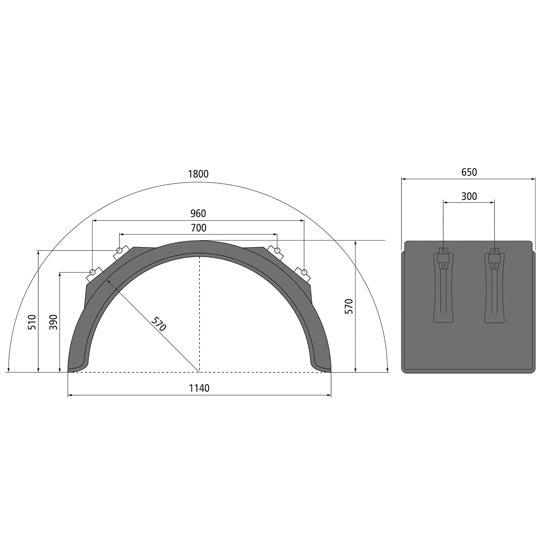

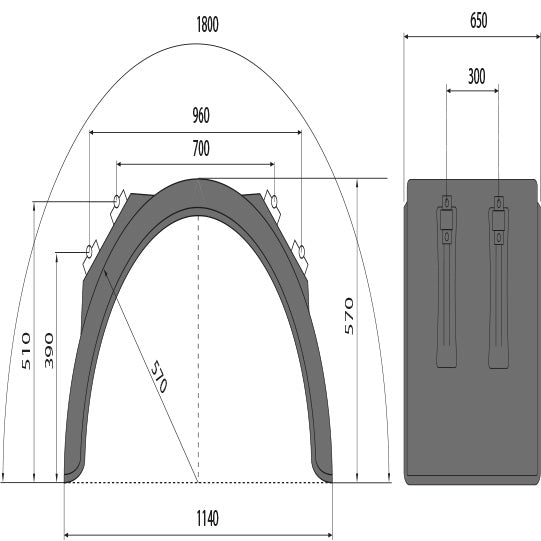

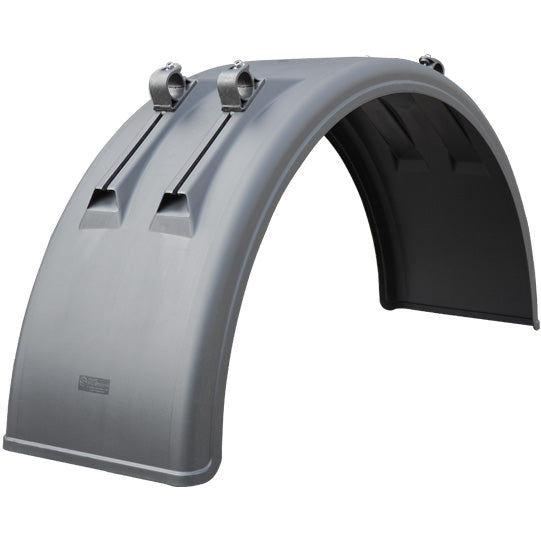

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1140.0
Console adjustment range 120.0
Height 570.0
Length 1800.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 570.0
Splash guard No
Width 650.0
