HR mudguard H-PE 67.1380.21-IKK SG, PP-EPDM

HR mudguard H-PE 67.1380.21-IKK SG, PP-EPDM

181378020

⚖️ 6,4 kg

Login view prices

Description

Rear mudguard H-PE 67.1380.21-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 670 × 660 × 2100 × 1320 × 665 mm (w × r × l × s × h)

Notes

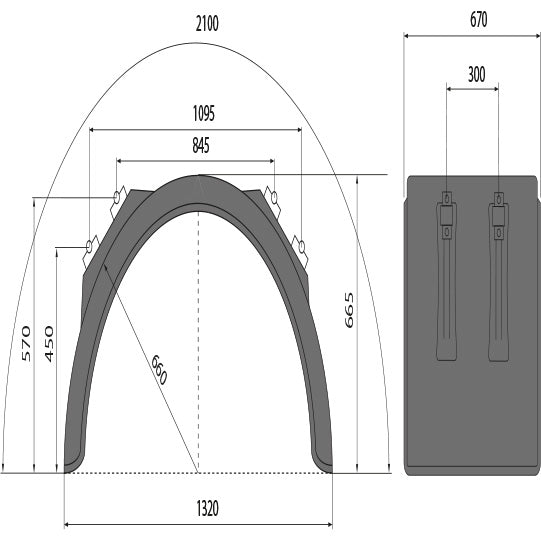

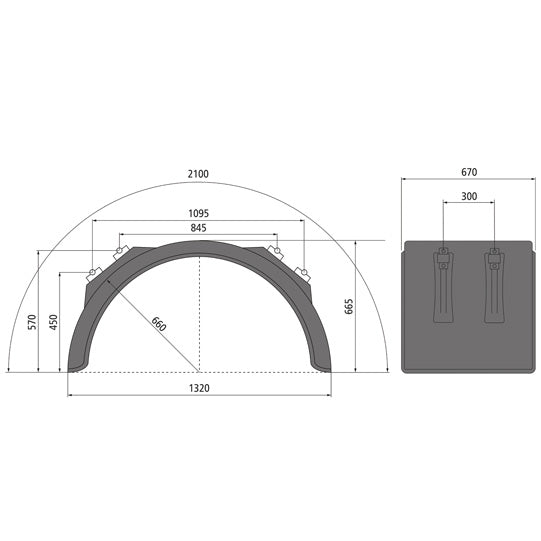

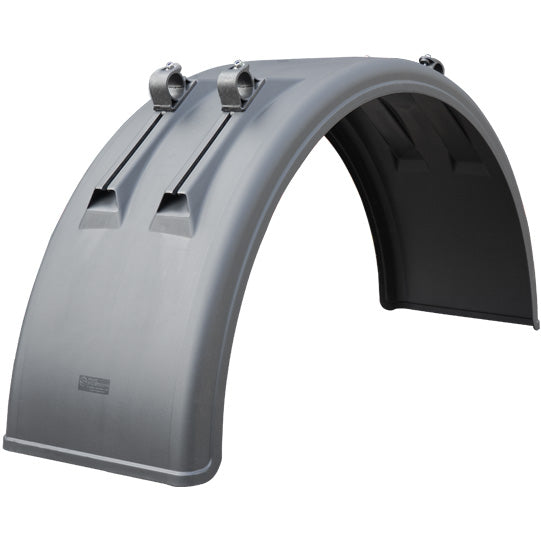

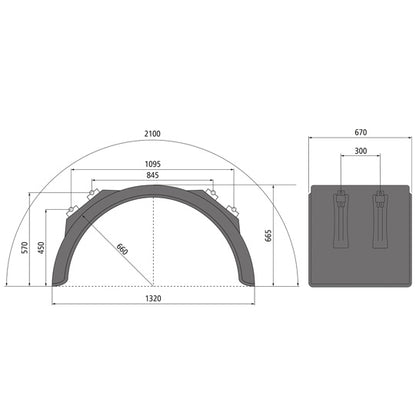

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1320.0
Console adjustment range 120.0
Height 665.0
Length 2100.0
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 660.0
Splash guard No
Width 670.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
