HR plastic H-PE 40.1160.20-IKK, polyethylene

HR plastic H-PE 40.1160.20-IKK, polyethylene

181375326

⚖️ 5,0 kg

Login view prices

Description

Rear mudguard H-PE 40.1160.20-IKK RO,polyethylene, black,integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 400 × 580 × 1940 × 1160 × 640 mm (w × r × l × s × h)

Notes

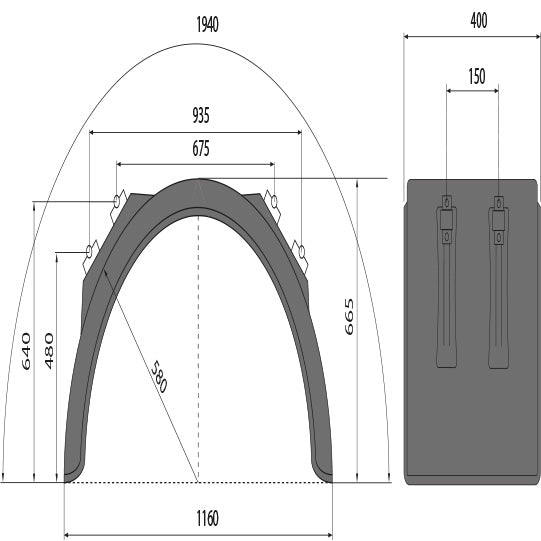

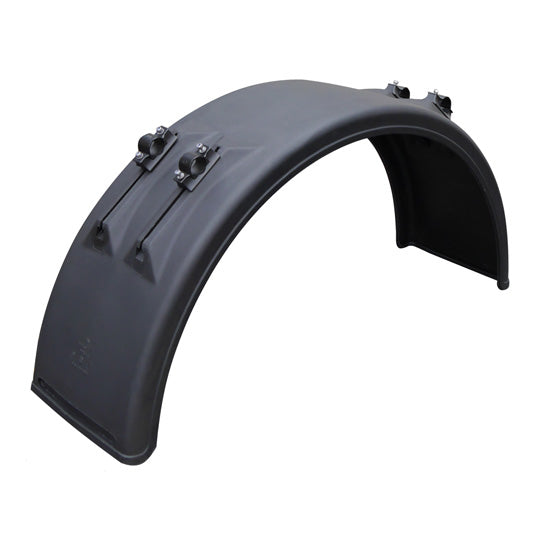

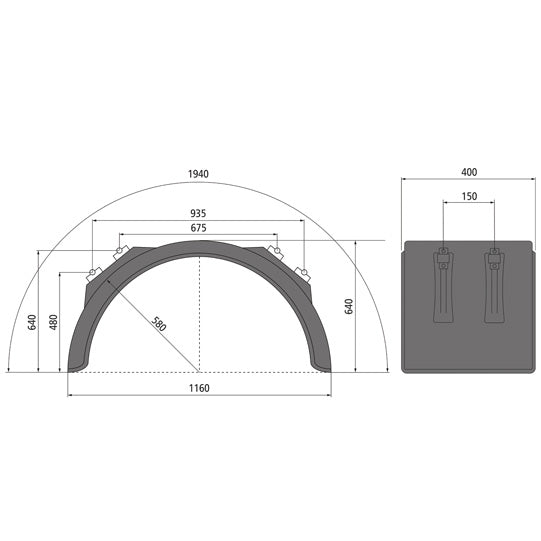

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1160.0
Console adjustment range 160.0
Height 640.0
Length 1940.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 580.0
Splash guard No
Width 400.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
