Keyhole anchor channel 1803-H, galvanised stl., 3000 mm

Keyhole anchor channel 1803-H, galvanised stl., 3000 mm

142138001

⚖️ 6,4 kg

Login view prices

Description

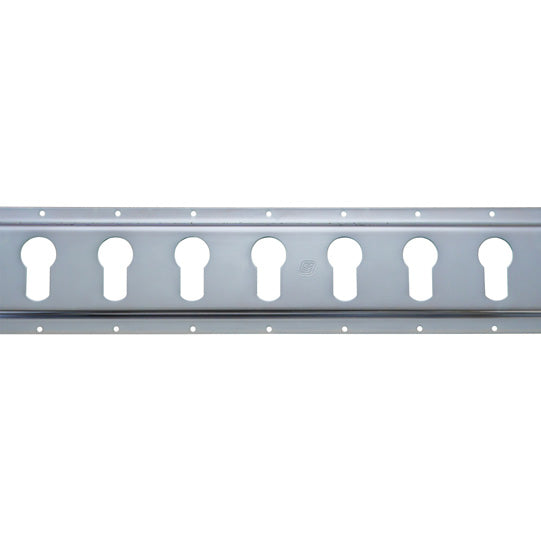

S-Line® keyhole anchor rail 1803-H, galvanised steel, for horizontal wall mounting, length 3000 mm, compatible with pegs ø 33 mm, clothes rails with steel end piece and combination anchor rail end fittings for lashing straps

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Hole diameter 34.0
Installation area Horizontal wall
Lashing rail profile 1
Lc value at 45 grad angle 800.0
Lc value at 90 grad angle 800.0
Length 3000.0
Material Steel
Material thickness 2.0
Profile with airline system 0
Side wall lifting aid 0
Surface Galvanized
Width 128.0
