Locking bar 3042, Al/el, 3064-3114mm, BC300daN, K.19/24S

Locking bar 3042, Al/el, 3064-3114mm, BC300daN, K.19/24S

142138503

⚖️ 5,35 kg

Login view prices

Description

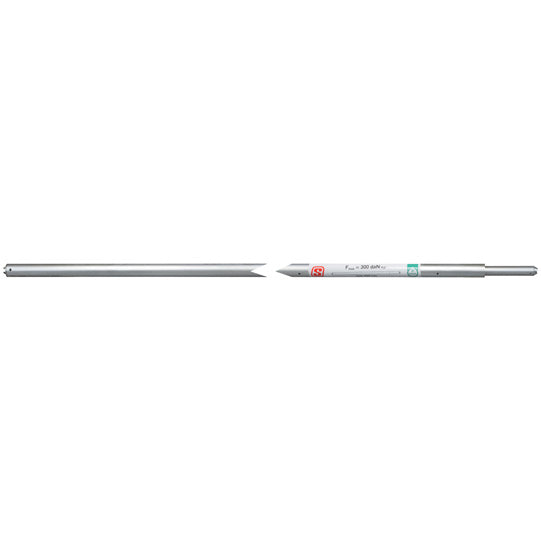

S-Line locking bar 3042 Al/el, BC 300 daN, aluminum anodised, application range 3064 - 3114 mm, can be shortened to 675 mm application range, spring travel 100 mm, recommended spring preload 40 mm, pre-set application range 3064 - 3114 mm, combination pin Ø 19/24 mm with slot 9 mm - rigid side 142138731, spring side 142138730, labelled, DEKRA-certified

Attributes

Adjustable No
Application area 1000 - 3100

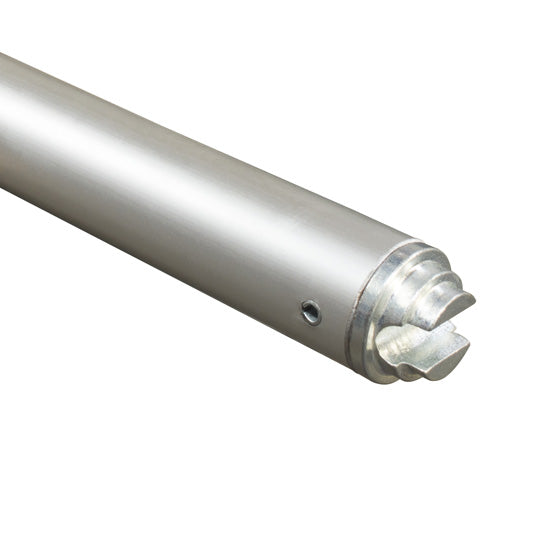

End fitting 19/24 mm combination spigot with slot
Locking force 300.0
Material Aluminum
Rubber coating No
Tube diameter 42
Tube shape round

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
