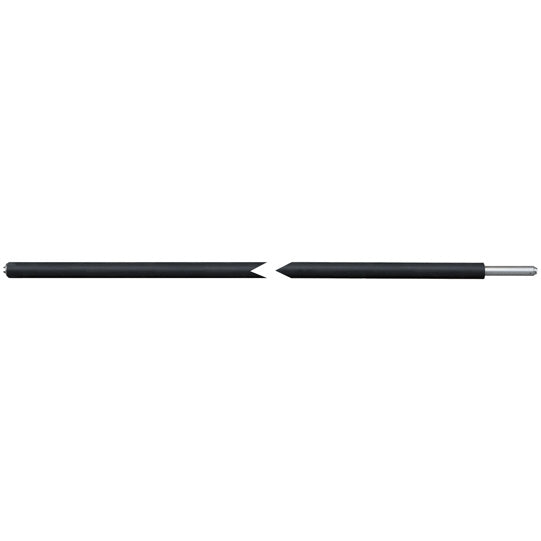

Locking bar 3042, Al/el G, 2450-2500mm, BC300daN, K.19/24S

Locking bar 3042, Al/el G, 2450-2500mm, BC300daN, K.19/24S

142138779

⚖️ 4,8 kg

Login view prices

Description

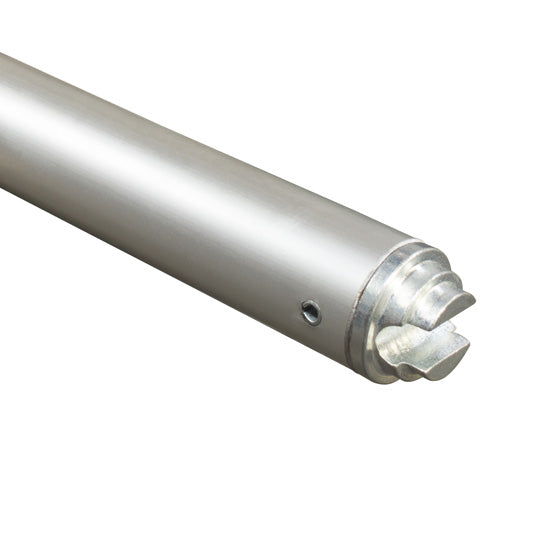

S-Line locking bar 3042 Al/el, BC 300 daN, aluminum anodised with rubber sheath, application range 2450-2500mm, spring travel 100 mm, recommended spring preload 40 mm, preset application range: 2450-2500mm, combination spigot Ø19/24 mm with slot 9 mm - rigid side: 142138731, spring side: 142138730, labelled, DEKRA-certified, optional pivots spring side: Ø19 - 142138762, Ø24/33 - 142138770, Ø24 - 142138766, Ø19/24/32 - , optional pivots rigid side: Ø19 - 142138761, Ø24/33 - 142138769, Ø24 - 142138765, Ø19/24/32 -

Notes

Attention: The minimum order quantity is 10 pieces

Attributes

Adjustable No

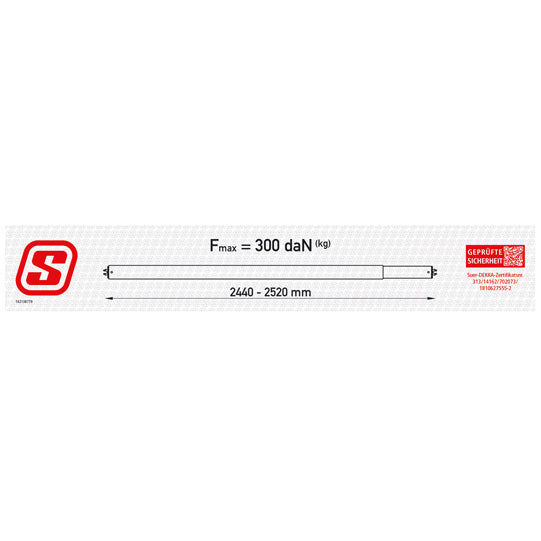

Application area 2440 - 2520
End fitting 19/24 mm combination spigot with slot
Locking force 300.0
Material Aluminum
Rubber coating Yes
Tube diameter 42
Tube shape round

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
