Locking bar 5042, St/vz, 1340-1940mm, BC500daN, K.19/24S

Locking bar 5042, St/vz, 1340-1940mm, BC500daN, K.19/24S

142138909

⚖️ 6,5 kg

Login view prices

Description

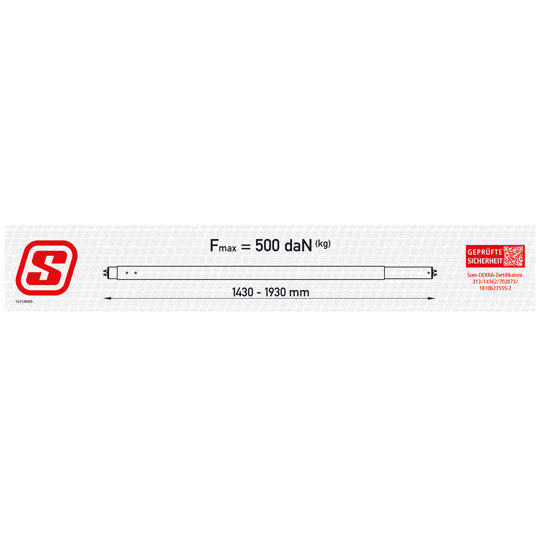

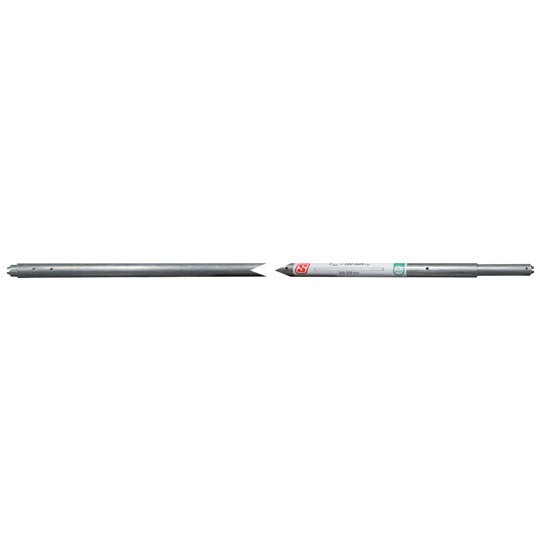

S-Line locking bar 5042 St/vz, BC 500 daN, galvanised steel, application range 1340 - 1940 mm, adjustable in 1x 50 mm and 4x 100 / 1x 50 mm increments, can be shortened to 675 mm application range, spring travel 100 mm, recommended spring preload 40 mm, pre-set application range 1340 - 1940 mm, combination spigot Ø 19/24 mm with slot 9 mm - rigid side 142138732, spring side 142138732, labelled, DEKRA-certified

Attributes

Adjustable Yes
Adjustment range 1430-1930

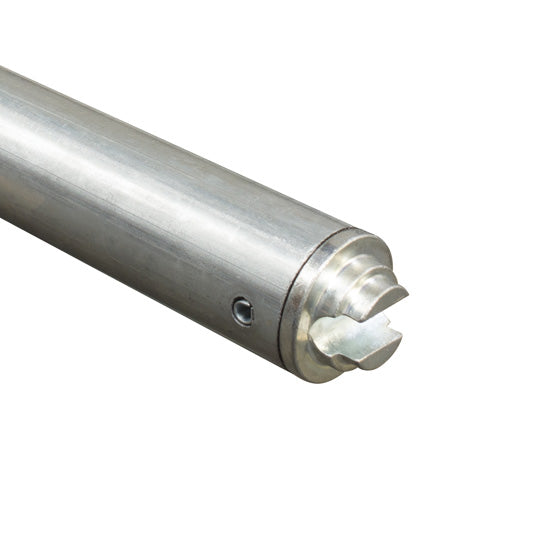

End fitting 19/24 mm combination spigot with slot
Locking force 500.0
Material Steel
Rubber coating No
Surface Galvanized
Tube diameter 42
Tube shape round

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
