Locking bar 5042, St/vz, 2360-2760mm, BC500daN, K.19/24S

Locking bar 5042, St/vz, 2360-2760mm, BC500daN, K.19/24S

142138506

⚖️ 9,2 kg

Login view prices

Description

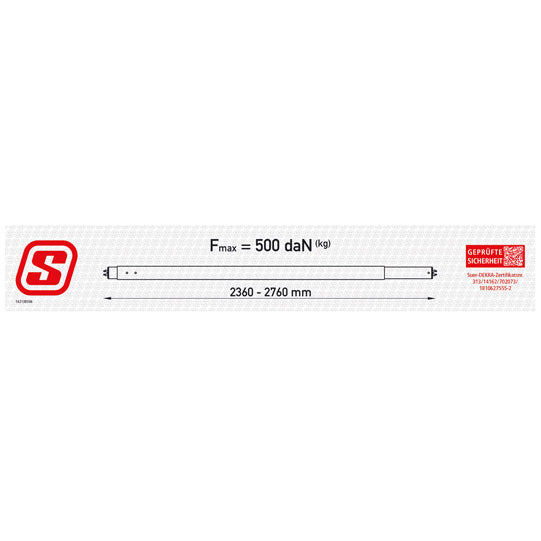

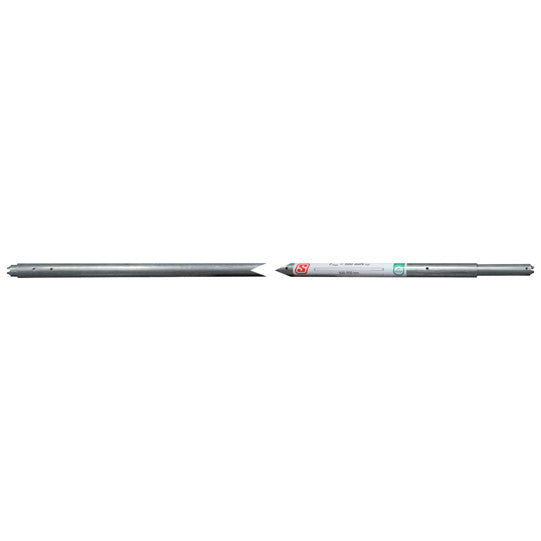

S-Line locking bar 5042 St/vz, BC 500 daN, galvanised steel, application range 2360 - 2760 mm, adjustable in 1x 50 mm and 4x 100 mm increments, can be shortened to 675 mm application range, spring travel 100 mm, recommended spring preload 40 mm, preset application range 2510 mm, combination spigot Ø 19/24 mm with slot 9 mm - rigid side 142138732, spring side 142138732, labelled, DEKRA-certified

Attributes

Adjustable Yes
Adjustment range 2360 - 2760

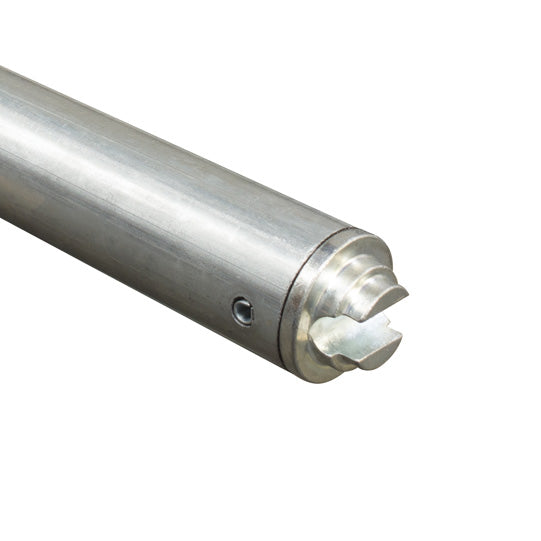

End fitting 19/24 mm combination spigot with slot
Locking force 500.0
Material Steel
Rubber coating No
Surface Galvanized
Tube diameter 42
Tube shape round
