LUIS shutter camera R7-S, black, 115° angle

LUIS shutter camera R7-S, black, 115° angle

245559239

⚖️ 0,78 kg

Login view prices

Description

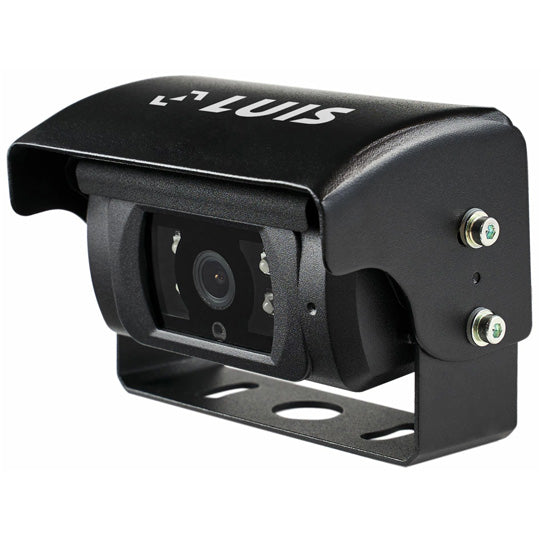

LUIS shutter camera R7-S with integrated heating, horizontal viewing angle 115°, 5-PIN connection, 300502.V1

Notes

The LUIS R7-S camera was specially developed for trucks and professional vehicles such as excavators and construction vehicles, combine harvesters and tractors. A special feature is the shutter. The automatically closing cover provides additional protection for the camera against dirt, rain and snow.
The camera sits in a die-cast aluminum housing and is therefore protected from dirt and water. In addition, a heater is installed next to the shutter for unfavorable weather conditions.
This camera is compatible with the R7-S video reversing system from LUIS.

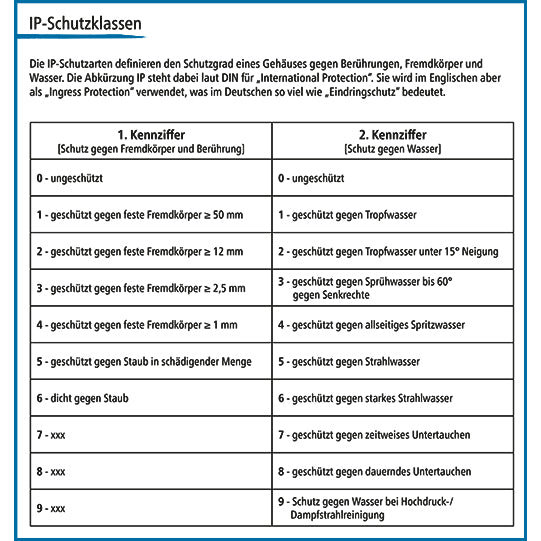

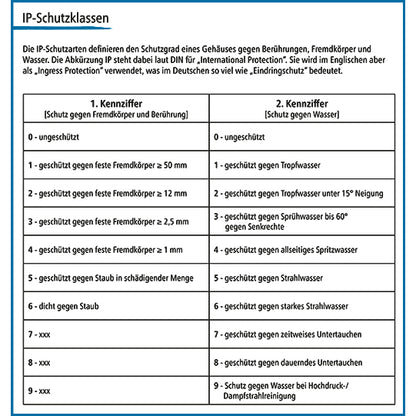

Infrared LEDs for extremely low light output, power consumption max. 520 mA (IR LED and heater on, shutter running), microphone. Protection class IP69k.

Attributes

Camera type Shutter camera
Color punkt 1 Black
Connector case 5-PIN
Data transmission Cables
Horizontal viewing angle 115°
Transmission signal PAL

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
