The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turn assistants:
- Detection area of at least 2.5 m x 6 m- Can be activated via direction indicator (turn signal) and speed (GPS). Differentiation between moving objects such as cyclists and static objects (parked cars, etc.) - Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning by activating the blinker - Driver information in the event of a malfunction (e.g. defective camera)
A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting area for the camera sensors must be observed:
- Minimum installation height of 1.80 m (maximum 4 meters)- Distance to the front of the vehicle min. 1 m/max. 6 m
External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).

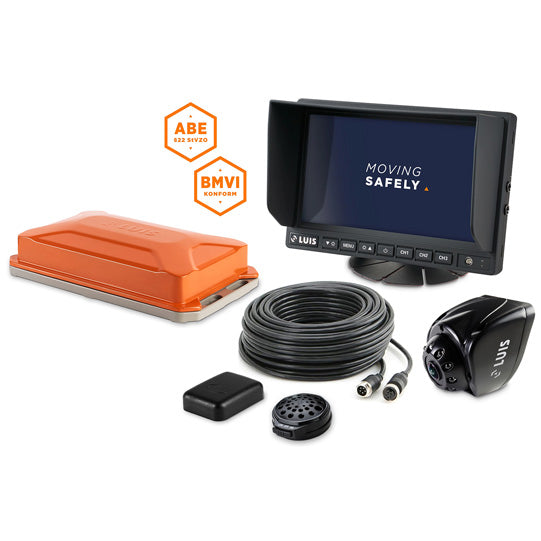

The system includes a wide-angle camera, the control box, a GPS module, a buzzer as well as the LUIS 7" Monitor Professional and the necessary cables.
The calibration box (article no. 245559220) is required for professional calibration and is available separately as an accessory.
It goes without saying that all components of the LUIS TURN DETECT® turn-off assistant undergo the comprehensive and strict quality assurance process with 100% routine testing in all key production steps.
The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with legal road safety requirements.
The London DVS extension enables a driving license in accordance with DVS in London. The Direct Vision Standard (DVS) is a regulation issued by Transport for London (TfL), which states that all HGVs over 12 tons - including those from abroad - will require a single-entry permit from 26.10.2020 in order to enter Greater London. If a truck does not meet the minimum requirements ex works, safety systems must be retrofitted. Retrofitting is possible for an existing LUIS TURN DETECT system (article no. 245559302). The retrofit kit contains the LUIS buzzer for London DVS, the LUIS controller for London DVS and the LUIS sticker for London DVS.
Once the system has been installed, it must be approved by a technical inspection body.
Included in delivery:1 x LUIS Turn Detect® V2.1 ECU (item no. 245559420)1 x LUIS TD150 camera (item no. 245559257)1 x LUIS camera cable, length 5 m (item no. 245559272)1 x LUIS GPS module 2.0 (item no. 245559500)1 x LUIS controller (item no. 245559419)1 x LUIS 2-PIN buzzer (item no. 245559300)1 x LUIS 7" Monitor Professional, Auto Dim (item no. 245559339)1 x LUIS Turn Detect® system cable (item no. 245559622)1 x LUIS outdoor loudspeaker London DVS (400412.V3)1 x LUIS Controller London DVS (400427.V1)1 x LUIS sticker for London DVS (400428.V1)1 x Manual retrofit set DVS(400432.V1)
