The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turn assistants:
Detection area of at least 2.5 m x 6 m Can be activated via direction indicator (turn signal) and speed (GPS). Adjustable speed range. Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.) Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning by activating the turn signal Information for the driver in the event of a malfunction (e.g. defective camera)
A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting area for the camera sensors must be observed:
Minimum mounting height of 1.80 m (maximum 4 meters) Distance to the front of the vehicle min. 1 meter /max. 6 meters
External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).

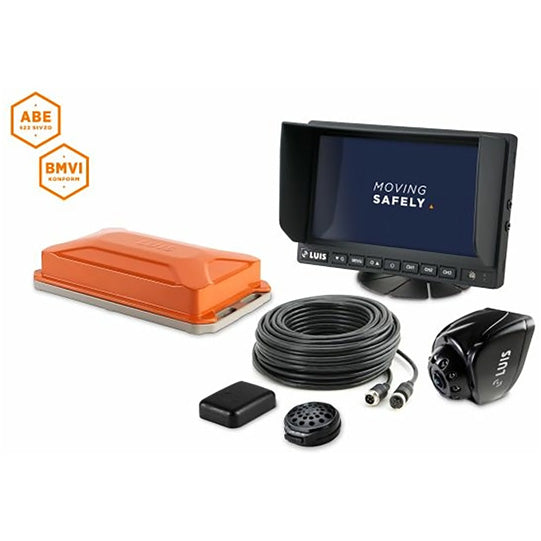

The system includes a wide-angle camera, the control box, a GPS module, a buzzer as well as the LUIS 7" Monitor Professional and the necessary cables.
The calibration box (article no. 245559220) is required for professional calibration and is available separately as an accessory. Please ask your customer advisor.
Included in delivery: 1 x LUIS Turn Detect® V2.1 ECU (article no. 245559420) 1 x LUIS camera TD150 (article no. 245559257) 1 x LUIS camera cable, length 5 m (article no. 245559272) 1 x LUIS GPS module 2.0 (article no. 245559500) 1 x LUIS Controller (item no. 245559419) 1 x LUIS 2-PIN Buzzer (item no. 245559300) 1 x LUIS 7" Monitor Professional, Auto Dim (item no. 245559339) 1 x LUIS Turn Detect® system cable (item no. 245559622) 1 x LUIS monitor holder
