LUIS TURN DETECT® turning assistant with 7" monitor and steering angle sensor complies with the requirements of the BMVI recommendation for turning assistants: Detection area of at least 2.5 m x 6 m, can be activated via direction indicator (turn signal) and speed (speed range adjustable), differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.), two-stage warning: two-stage warning: two-stage warning: two-stage warning: two-stage warning: two-stage warning: two-stage warning.Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation and/or steering angle, information for the driver in the event of a malfunction (e.g. defective camera), a general operating permit (ABE) was issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting range for the camera sensors must be observed: minimum mounting height of 1.80 m (maximum 4 m), distance to the front of the vehicle min. 1 m /max. 6 m.External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).The system includes a wide-angle camera, the control box, a buzzer, a steering angle sensor as well as the LUIS 7" Monitor Professional and the necessary cables.The calibration box (article no. 245559220) is required for professional calibration; this is available separately as an accessory.The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The vehicle driver remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with the legal road safety requirements.

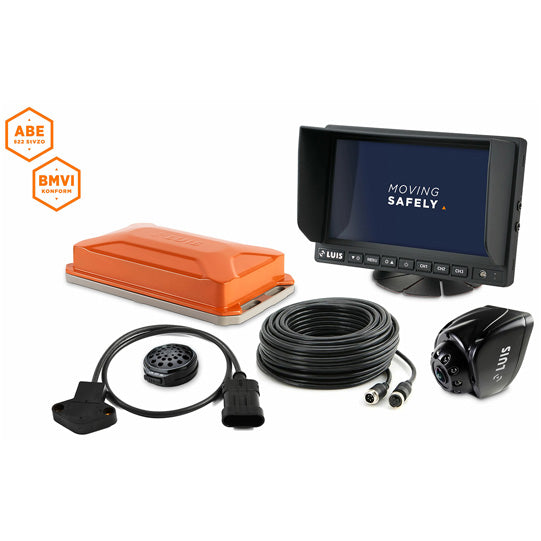

Included in delivery:1 x LUIS 7" Monitor Professional (article no. 245559339)1 x LUIS Turn Detect® V2.1 ECU (article no. 245559420)1 x LUIS camera TD150 (article no. 245559257)1 x LUIS camera cable, length 5 m (article no. 245559272)1 x LUIS Controller (article no. 245559419)1 x LUIS 2-PIN Buzzer (article no. 245559300)1 x LUIS Steering Angle Sensor (article no. 245559418)1 x LUIS Turn Detect System Cable (article no. 245559622)1 x LUIS Monitor Bracket
