LUIS TURN DETECT® turn-off assistant with 10" monitor, GPS and camera holder.
The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turn assistants:- Detection area of at least 2.5 m x 6 m- Can be activated via direction indicator (turn signal) and speed (GPS). Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.)- Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation - Driver information in the event of a malfunction (e.g. defective camera)A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting area for the camera sensor system must be observed:- Minimum mounting height of 1.80 m (maximum 4 m)- Distance to the front of the vehicle min. 1 m/max. 6 m
External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).

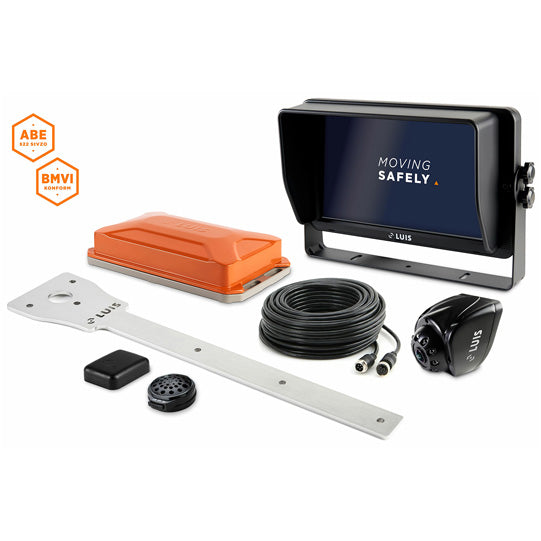

The system includes a wide-angle camera, the control box, a GPS module, a buzzer, a camera holder as well as the LUIS 10" Monitor Professional and the necessary cables.
The calibration box (article no. 245559220) is required for professional calibration and is available separately as an accessory.
It goes without saying that all components of the LUIS TURN DETECT® turn-off assistant undergo the comprehensive and strict quality assurance process with 100% routine testing in all key production steps.
The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver of the vehicle remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with the legal road safety requirements.
Included in delivery:1 x LUIS Turn Detect® V2.1 ECU (article no. 245559420)1 x LUIS TD150 camera (article no. 245559257)1 x LUIS camera cable, length 5 m (article no. 245559272)1 x LUIS GPS module 2.0 (article no. 245559500)1 x LUIS controller (article no. 245559419)1 x LUIS 2-PIN Buzzer (article no. 245559300)1 x LUIS LUIS 10" Quad-Touchmonitor HD (article no. 245559279)1 x LUIS Turn Detect® 2.0 camera mount (article no. 245559301)1 x LUIS Turn Detect® system cable (article no. 245559622)1 x LUIS monitor mount
