The LUIS TURN DETECT® turning assistant with 7" monitor and GPS now also for the left-hand side (left turn).The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turning assistants:- Detection area of at least 2.5 m x 6 m.- Can be activated via direction indicator (blinker) and speed (GPS). Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.).- Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation.- Driver information in the event of a malfunction (e.g. defective camera).- A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, an installation range of the camera sensor system must be observed:- Minimum installation height of 1.80 m (maximum 4 m)- Distance to the front of the vehicle min. 1 m /max. 6 mExternal alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).
The system includes a wide-angle camera (article no. 245559257), the control box (article no. 245559422), a GPS module, a buzzer (article no. 245559300), a steering angle sensor (article no. 245559418), a bracket (article no. 245559301), as well as the LUIS 7" Monitor Professional (article no. 245559339) and the necessary cables (article no. 245559272).
It goes without saying that all components of the LUIS TURN DETECT® turn-off assistant undergo the comprehensive and strict quality assurance process with 100% routine testing in all key production steps. The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver of the vehicle remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with the legal road safety requirements.

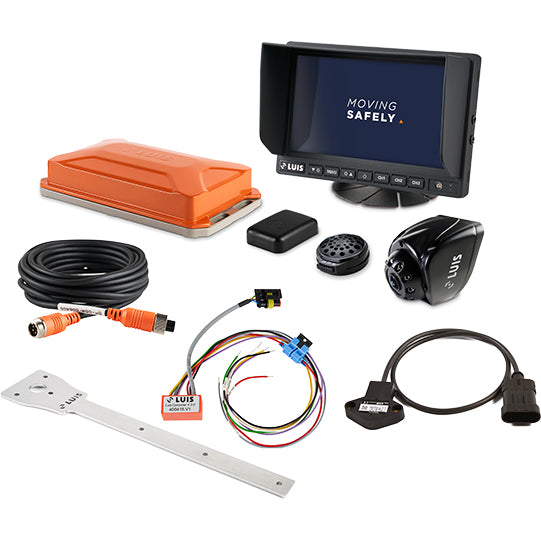

Included in delivery:1 x LUIS Turn Detect® Left, left turn, ECU only (article no. 245559422)1 x LUIS camera TD150 (article no. 245559257)1 x LUIS camera cable, length 5 m (article no. 245559272)1 x LUIS GPS module 2.0 (article no. 245559500)1 x LUIS 2-PIN Buzzer (article no. 245559300)1 x LUIS Controller (article no. 245559419)1 x LUIS 7" Monitor Professional, Auto Dim (article no. 245559339)1 x LUIS Steering Angle Sensor (article no. 2455594181 x LUIS Turn Detect® 2.0 Camera Holder (article no. 245559301)
