Mudguard H 2212, galvanized, 220 × 1210 × 390 × 375 × 750 mm

Mudguard H 2212, galvanized, 220 × 1210 × 390 × 375 × 750 mm

110352031

⚖️ 2,9 kg

Login view prices

Description

Mudguard H 2212, sendzimir galvanized sheet steel, 220 × 1210 × 390 × 375 × 750 mm (w × l × h × r × s)

Notes

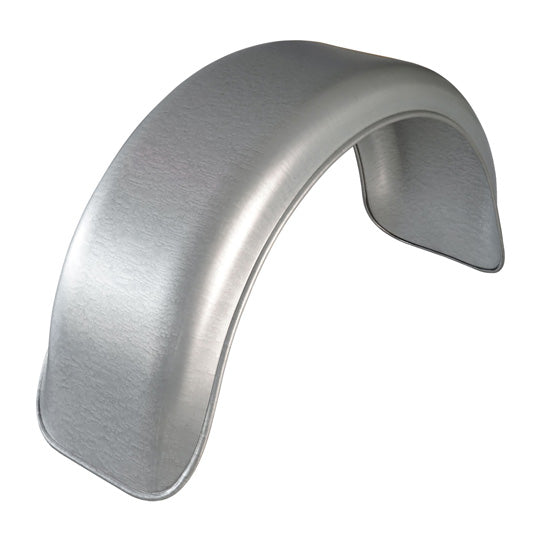

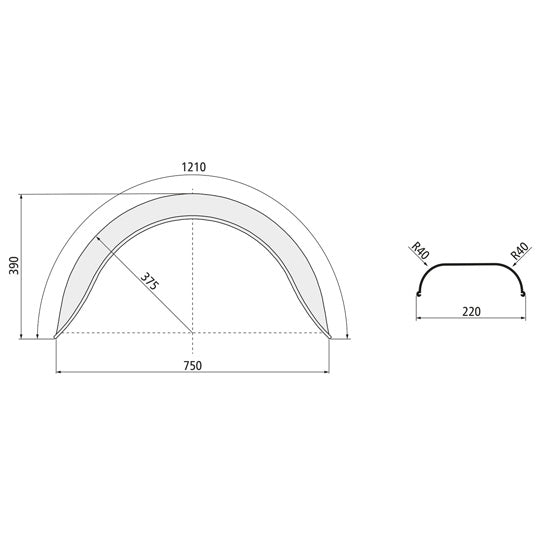

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 750.0
Height 390.0
Length 1210.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern without
Mudguard console No
Radius 375.0
Splash guard No
Surface Sendzimir galvanizing
Width 220.0
