Mudguard H 2614/12, galvanized, 260 × 1380 × 445 × 430 × 860 mm

Mudguard H 2614/12, galvanized, 260 × 1380 × 445 × 430 × 860 mm

132354019

⚖️ 3,7 kg

Login view prices

Description

Mudguard H 2614/12, sendzimir galvanized sheet steel, 260 × 1380 × 445 × 430 × 860 mm (w × l × h × r × s), for mounting on the dropside, with mounting hole pattern

Notes

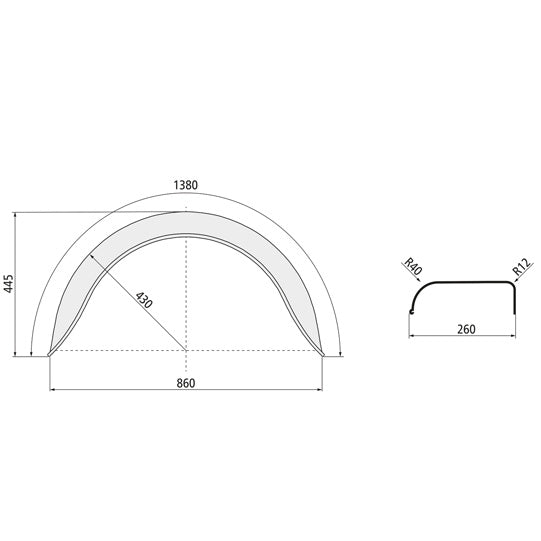

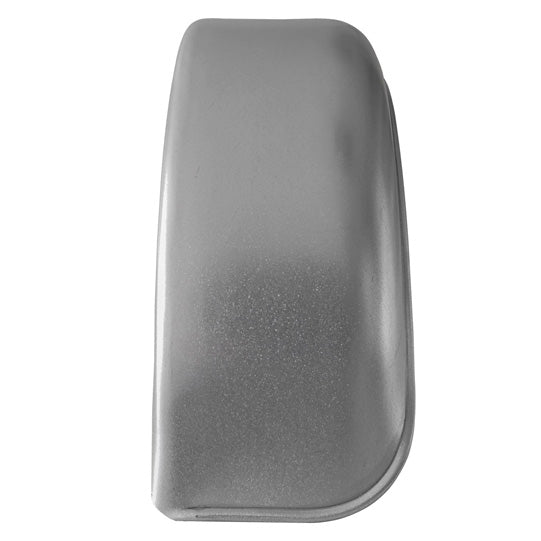

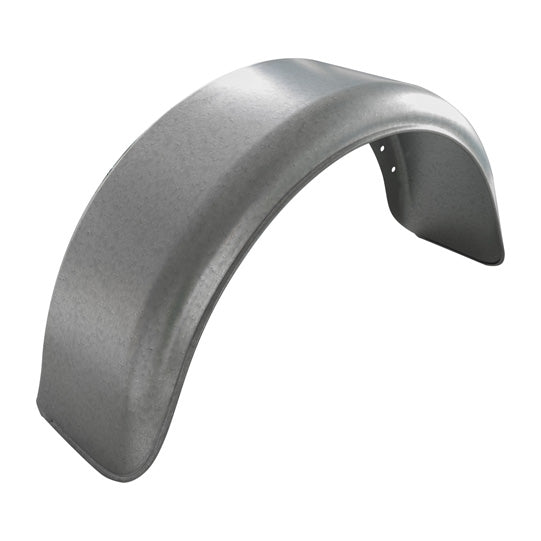

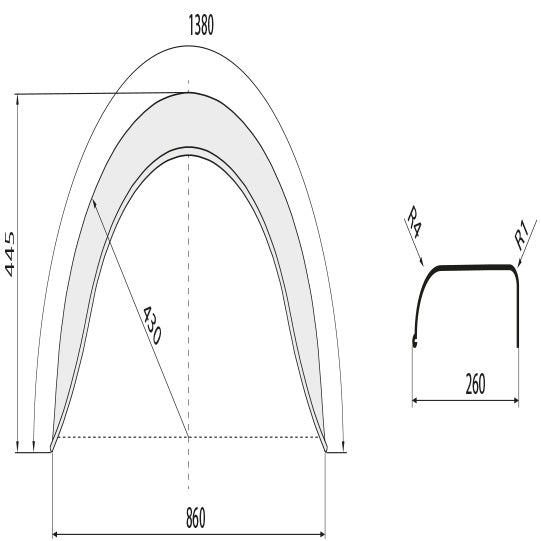

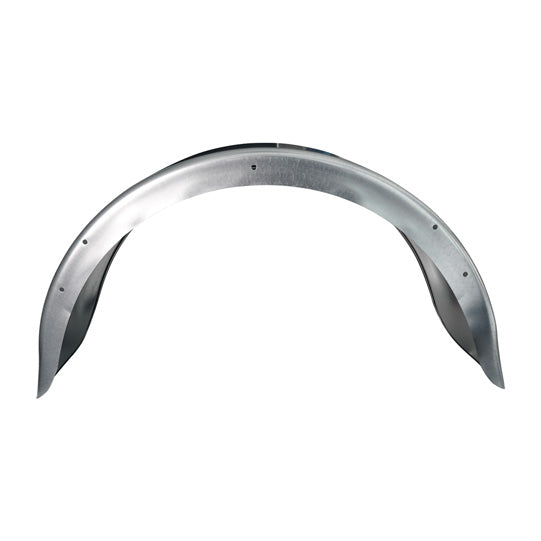

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 860.0
Height 445.0
Length 1380.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern with
Mudguard console No
Radius 430.0
Splash guard No
Surface Sendzimir galvanizing
Width 260.0
