Mudguard H2413, galvanised, 240 × 1285 × 415 × 400 × 800 mm

Mudguard H2413, galvanised, 240 × 1285 × 415 × 400 × 800 mm

110352034

⚖️ 3,3 kg

Login view prices

Description

Mudguard H 2413, sendzimir galvanised sheet steel, 240 × 1285 × 415 × 400 × 800 mm (w × l × h × r × s)

Notes

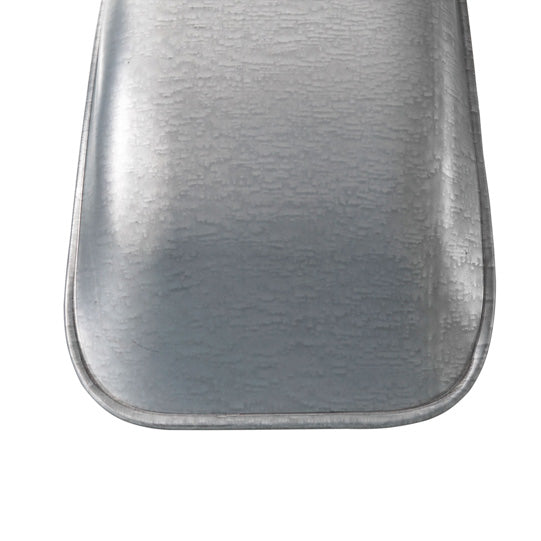

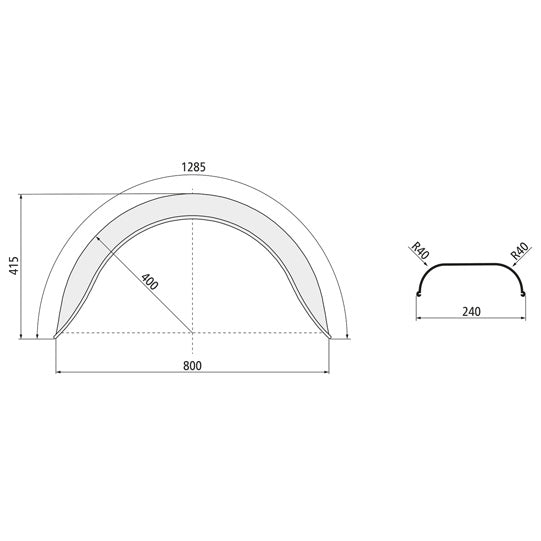

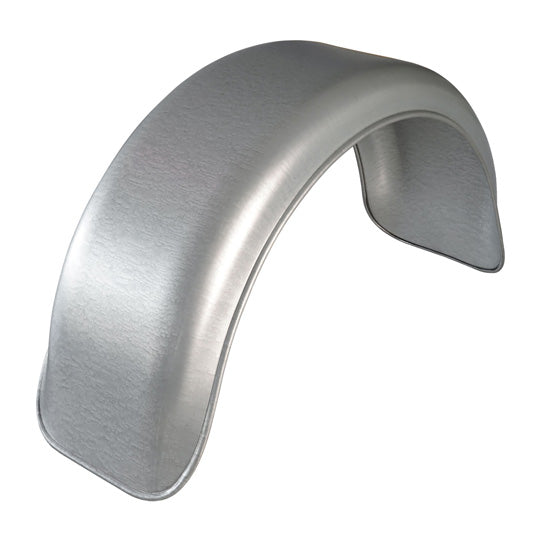

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 800.0
Height 415.0
Length 1285.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern without
Mudguard console No
Radius 400.0
Splash guard No
Surface Sendzimir galvanizing
Width 240.0
