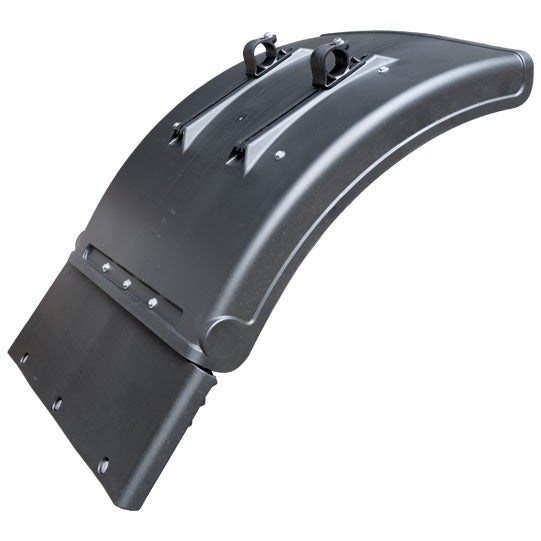

Mudguard quarter L-PE 45.670.07-IKK AS 250 SG, polypropylene

Mudguard quarter L-PE 45.670.07-IKK AS 250 SG, polypropylene

181378065

⚖️ 2,85 kg

Login view prices

Description

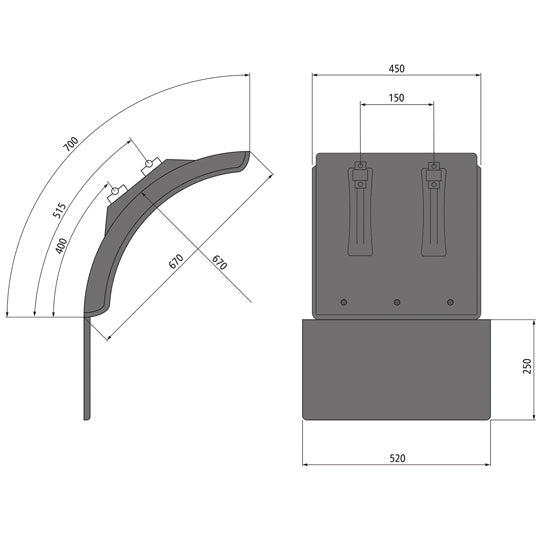

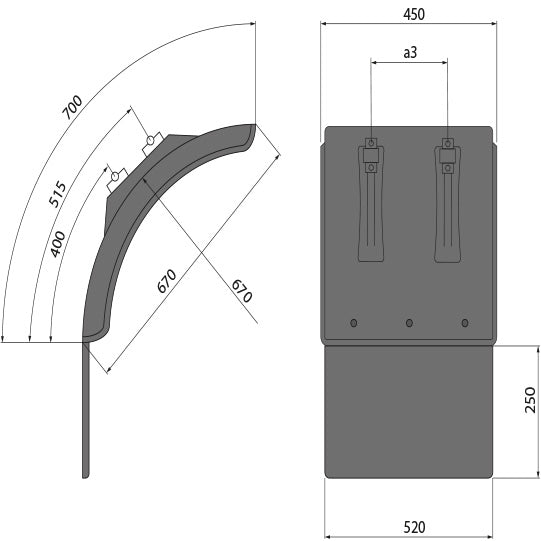

Mudguard short (quarter) L-PE 45.670.07-IKK AS 250 SG, with softflow splash guard system, PP-EPDM (modified polypropylene), black, injection molded, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 450 × 670 × 700 × 670 mm (w × r × l × s), splash guard 520 × 250 mm (w × l)

Notes

The scope of delivery does not include securing the locking lever. We recommend using a padlock.this item is not a stock item and is ordered on customer commission. The displayed price may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 670.0
Console adjustment range 115.0
Length 700.0
Length splash guard 250.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard Yes
Width 450.0
