Mudguard quarter L-PE 45.670.07-IKK AS 300 SG, polypropylene

Mudguard quarter L-PE 45.670.07-IKK AS 300 SG, polypropylene

181378066

⚖️ 2,9 kg

Login view prices

Description

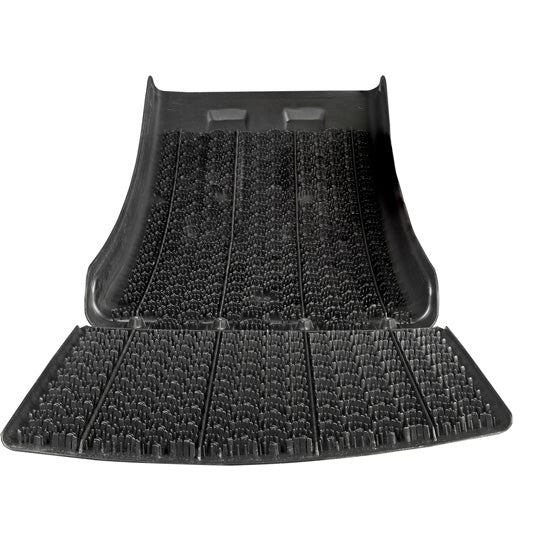

Mudguard short (quarter) L-PE 45.670.07-IKK AS 300 SG, with softflow splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 450 × 670 × 700 × 670 mm (w × r × l × s), splash guard 520 × 300 mm (w × l)

Notes

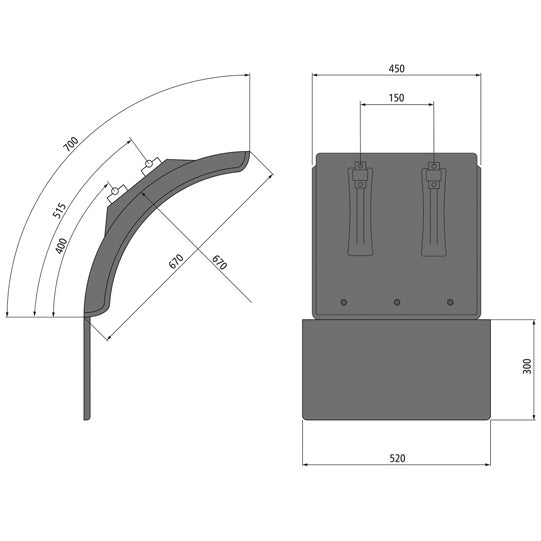

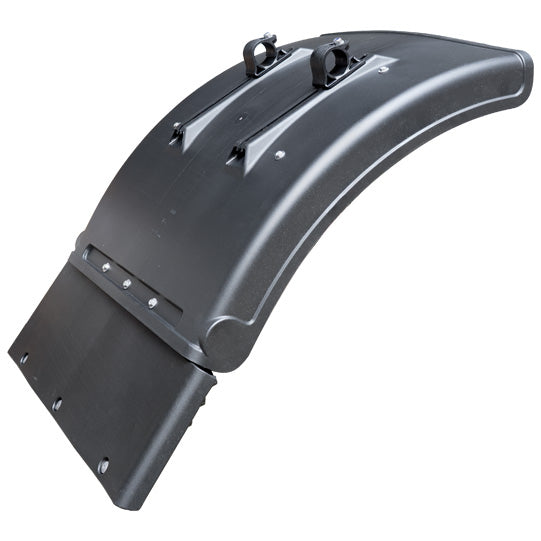

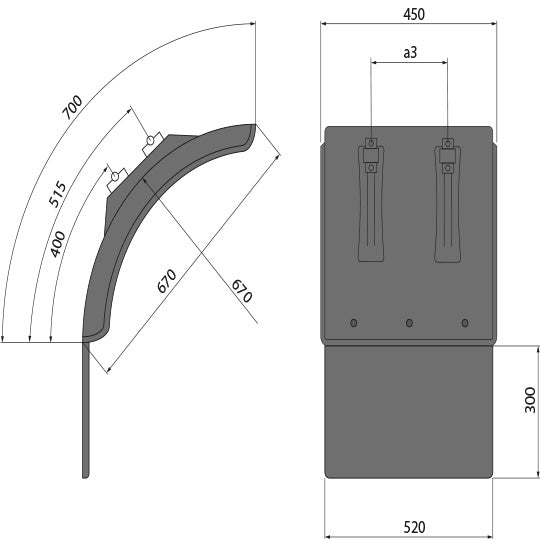

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 670.0
Console adjustment range 115.0
Length 700.0
Length splash guard 300.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard Yes
Width 450.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
