Mudguard quarter L-PE 65.670.07-IKK AS 124 SG, polypropylene

Mudguard quarter L-PE 65.670.07-IKK AS 124 SG, polypropylene

181378069

⚖️ 3,6 kg

Login view prices

Description

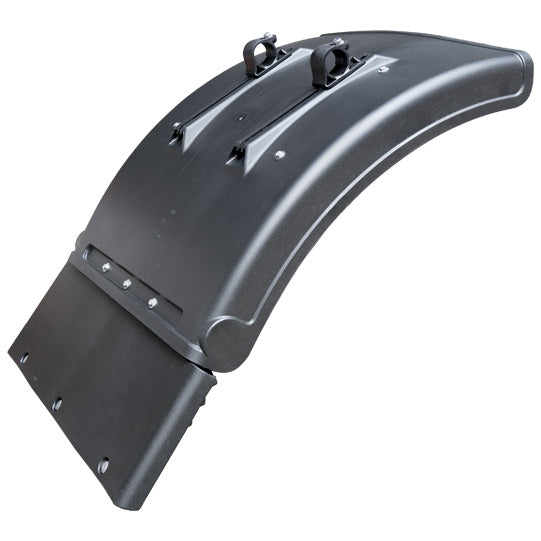

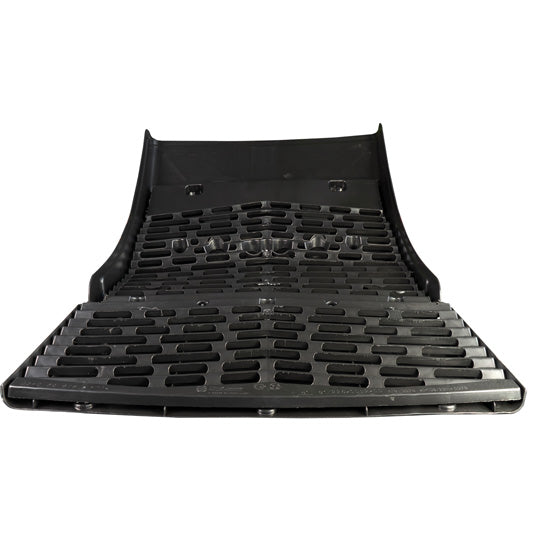

Mudguard short (quarter) L-PE 65.670.07-IKK AS 124 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 650 × 670 × 700 × 670 mm (w × r × l × s), splash guard690 ×124 mm (w × l)

Notes

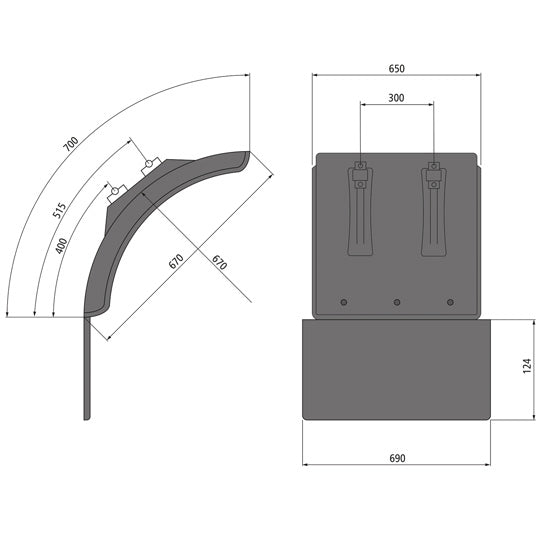

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions This item is not a stock item and is ordered on a customer commission basis. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 670.0
Console adjustment range 115.0
Length 700.0
Length splash guard 124.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard Yes
Width 650.0
