Mudguard quarter L-PE 65.670.07-IKK AS 310 SG, polypropylene

Mudguard quarter L-PE 65.670.07-IKK AS 310 SG, polypropylene

181378071

⚖️ 3,9 kg

Login view prices

Description

Mudguard short (quarter) L-PE 65.670.07-IKK AS 310 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 650 × 670 × 700 × 670 mm (w × r × l × s), splash guard690 × 310 mm (w × l)

Notes

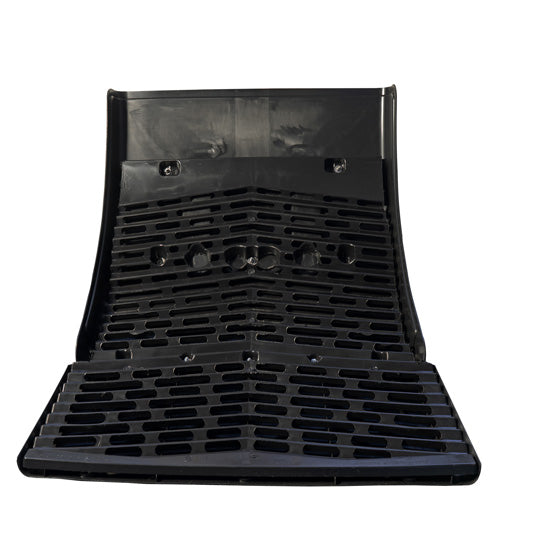

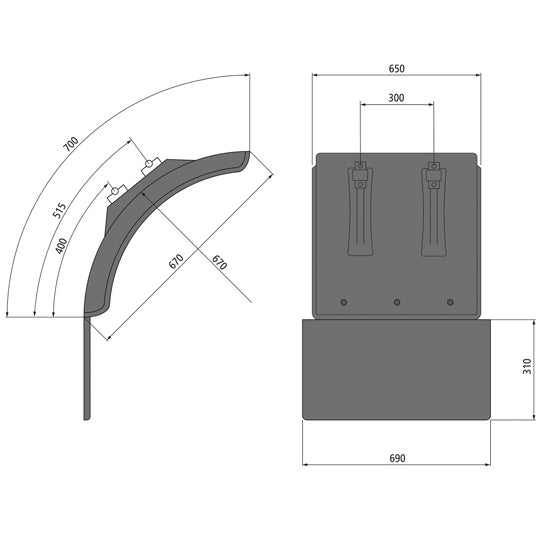

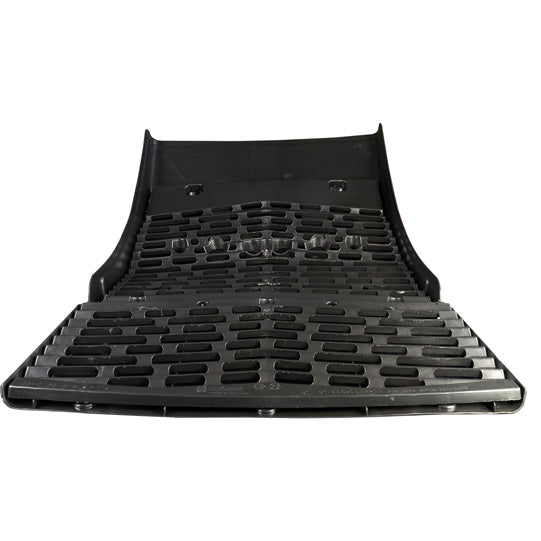

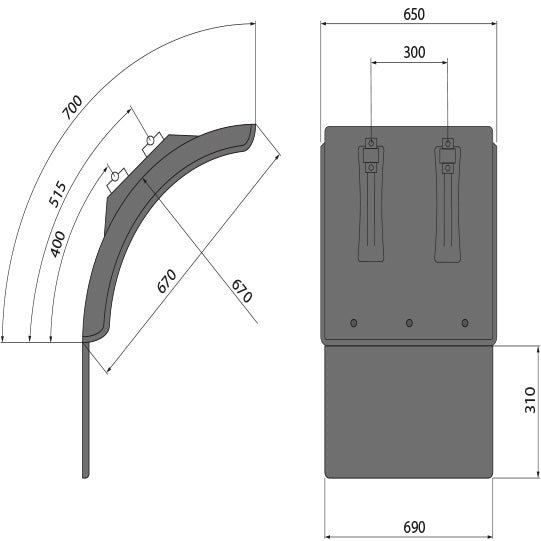

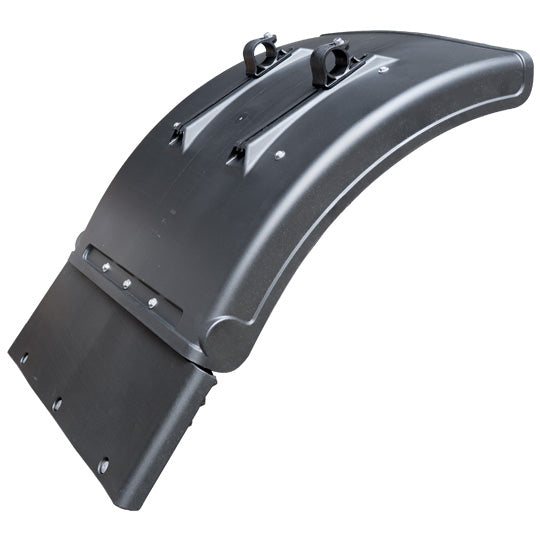

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 670.0
Console adjustment range 115.0
Length 700.0
Length splash guard 310.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard Yes
Width 650.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
