Mudguard short L-PE 65.670.07-IKK SG, polypropylene

Mudguard short L-PE 65.670.07-IKK SG, polypropylene

181378115

⚖️ 2,6 kg

Login view prices

Description

Mudguard short (quarter) L-PE 65.670.07-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 650 × 670 × 700 × 670 mm (w × r × l × s)

Notes

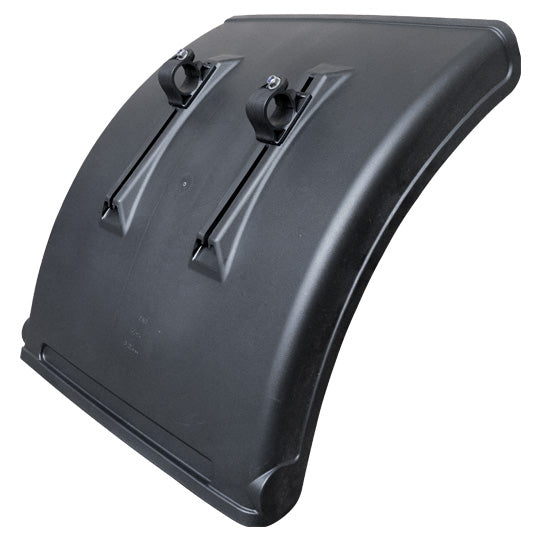

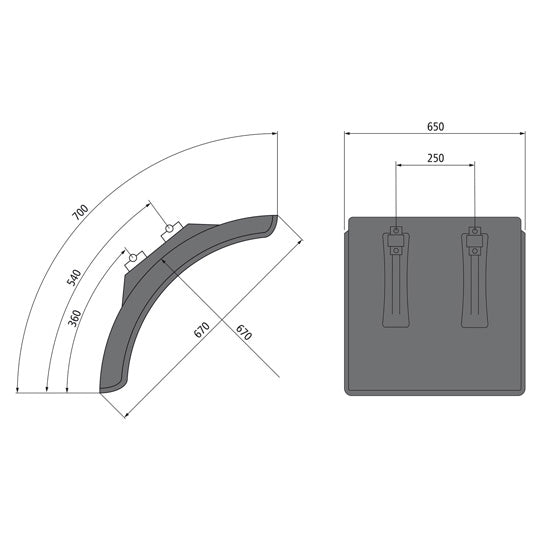

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 670.0
Console adjustment range 180.0
Length 700.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard No
Width 650.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
