Mudguard short L-PE 70.745.08-IKK SG, polypropylene

Mudguard short L-PE 70.745.08-IKK SG, polypropylene

181378117

⚖️ 2,62 kg

Login view prices

Description

Mudguard short (quarter) L-PE 70.745.08-IKK SG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 700 × 660 × 760 × 725 mm (w × r × l × s)

Notes

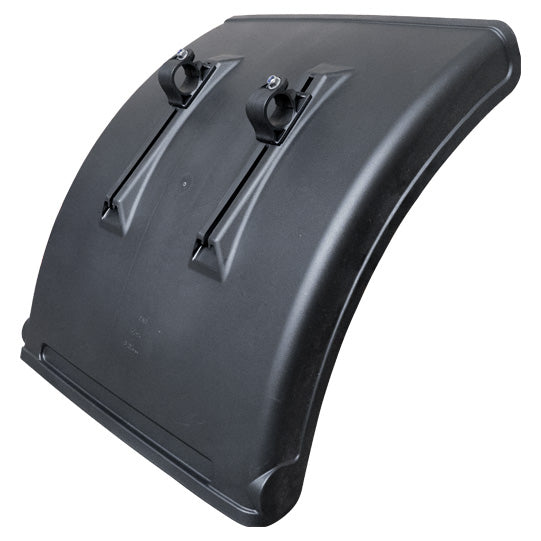

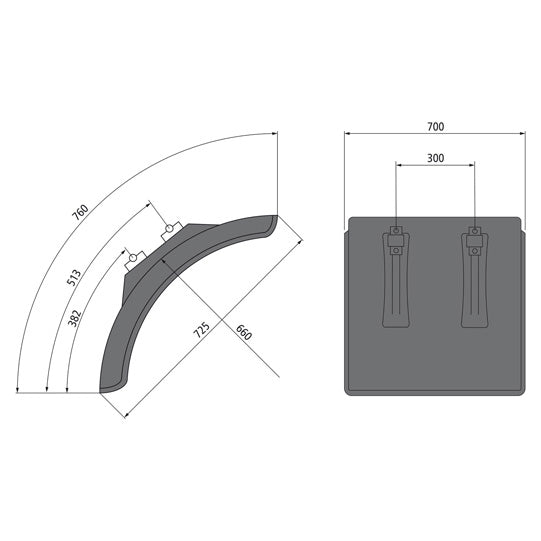

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions This item is not a stock item and is ordered on a customer commission basis. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 725.0
Console adjustment range 131.0
Length 760.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 660.0
Splash guard No
Width 700.0
