Mudguard short (quarter) L-PE 35.685.07-IKK, polyethylene

Mudguard short (quarter) L-PE 35.685.07-IKK, polyethylene

274375162

⚖️ 1,7 kg

Login view prices

Description

Mudguard short (quarter) L-PE 35.685.07-IKK, polyethylene, black, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 350 × 650 × 720 × 685 mm (w × r × l × s)

Notes

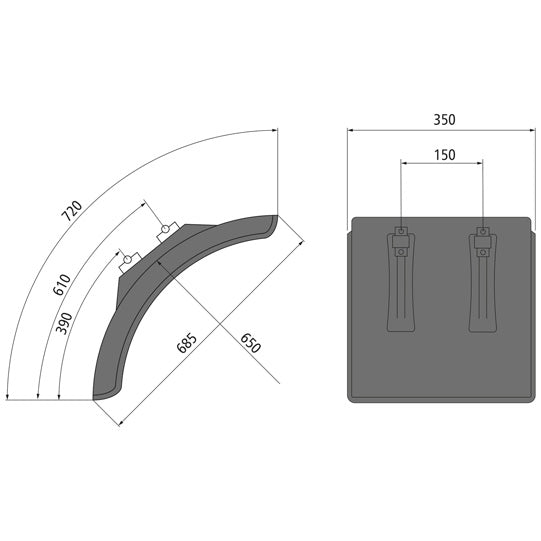

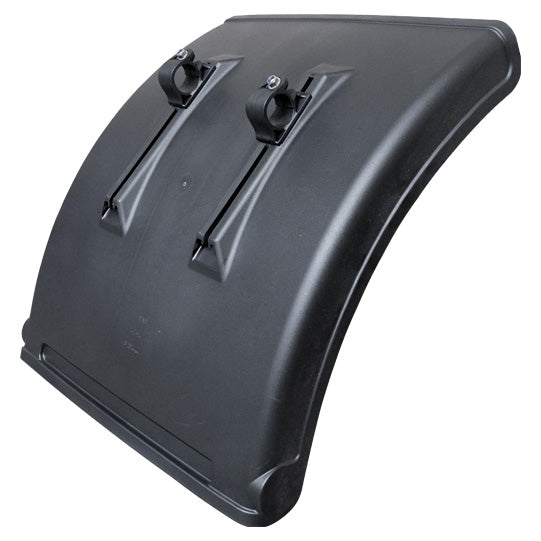

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 685.0
Console adjustment range 220.0
Length 720.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 650.0
Splash guard No
Width 350.0
