Mudguard short (quarter) L-PE 48.655.07-IKK SG, PP

Mudguard short (quarter) L-PE 48.655.07-IKK SG, PP

181378138

⚖️ 1,82 kg

Login view prices

Description

Mudguard short (quarter) L-PE 48.655.07-IKK SG, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for tube Ø 40 - 42 mm, 480 × 530 × 700 × 646 mm (w × r × l × s)

Notes

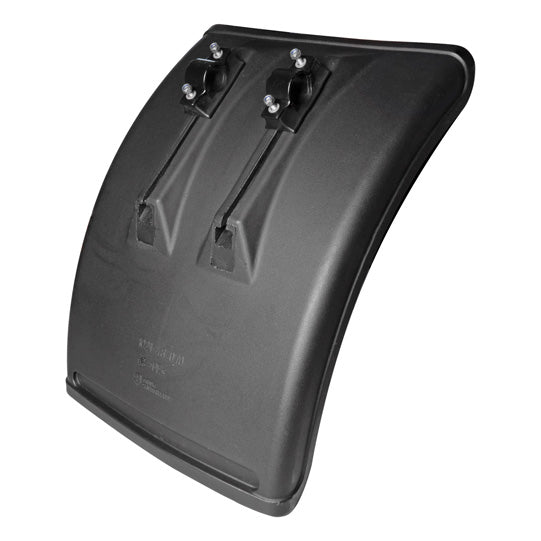

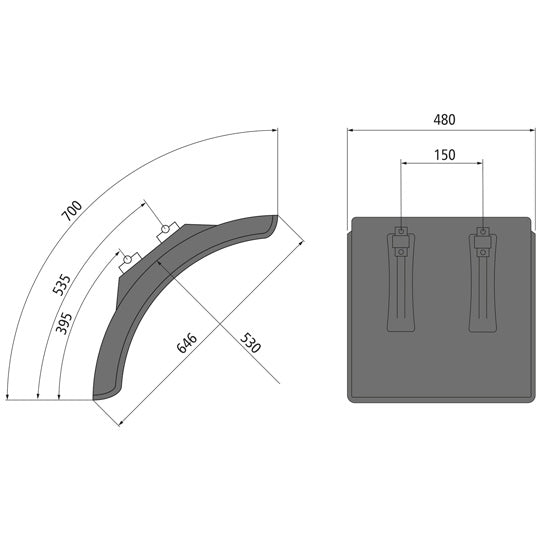

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 646.0
Console adjustment range 140.0
Length 700.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 530.0
Splash guard No
Width 480.0
