Mudguard short (quarter) L-PE 50.670.07-IKK, polyethylene

Mudguard short (quarter) L-PE 50.670.07-IKK, polyethylene

181375443

⚖️ 2,0 kg

Login view prices

Description

Mudguard short (quarter) L-PE 50.670.07-IKK, polyethylene, black, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 500 × 670 × 700 × 676 mm (w × r × l × s)

Notes

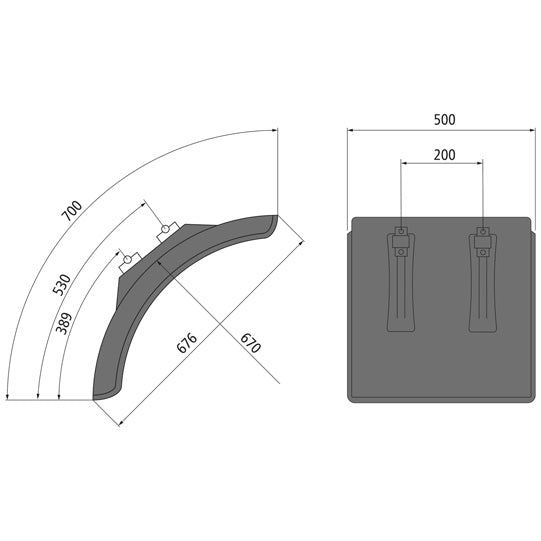

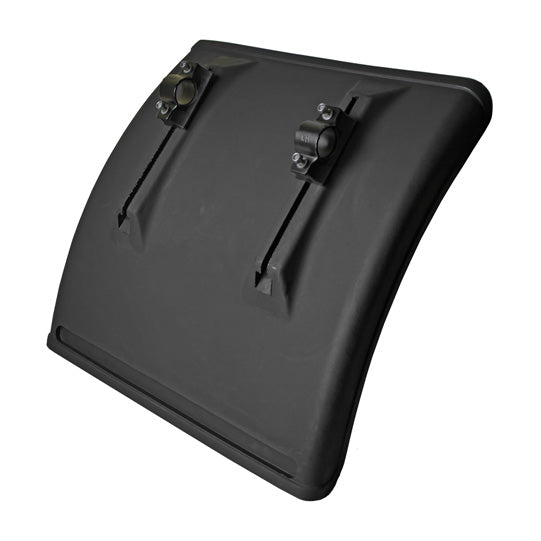

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 676.0
Console adjustment range 141.0
Length 700.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 670.0
Splash guard No
Width 500.0
