Mudguard short (quarter) L-PE 55.740.08-IKK AS 124

Mudguard short (quarter) L-PE 55.740.08-IKK AS 124

181376035

⚖️ 3,8 kg

Login view prices

Description

Mudguard short (quarter) L-PE 55.740.08-IKK AS 124, with lamella splash guard system, polyethylene, black, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 550 × 500 × 810 × 500 mm (w × r × l × s), splash guard 500 × 124 mm (w × l)

Notes

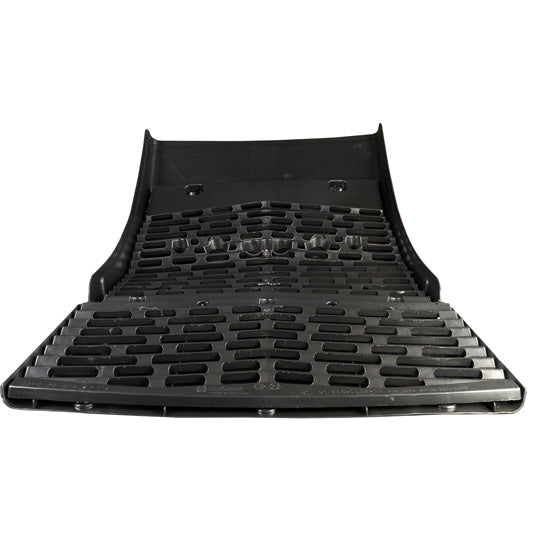

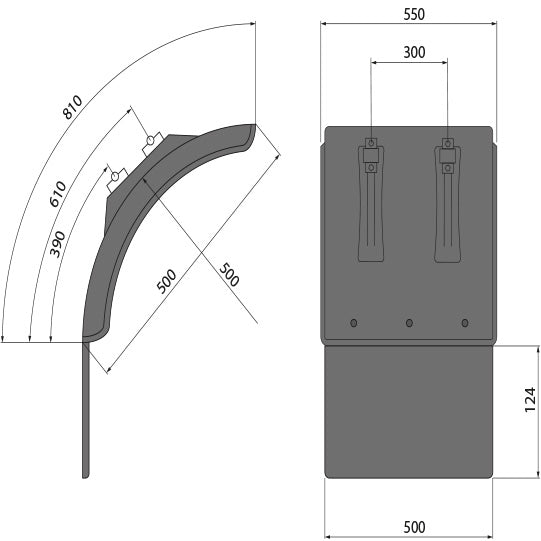

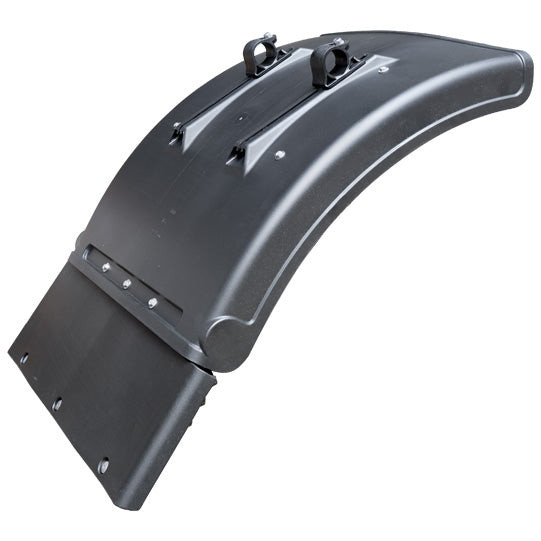

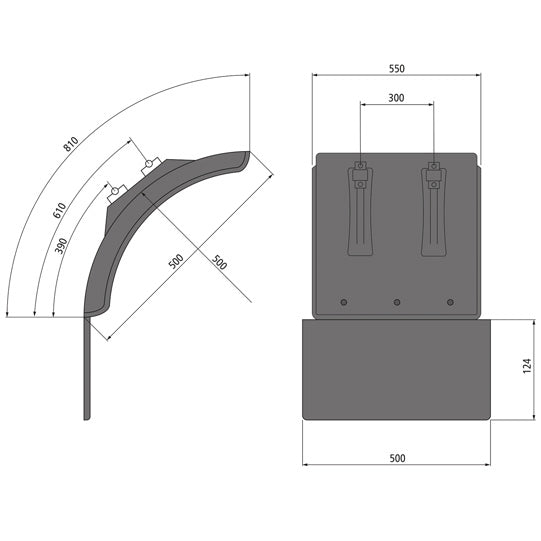

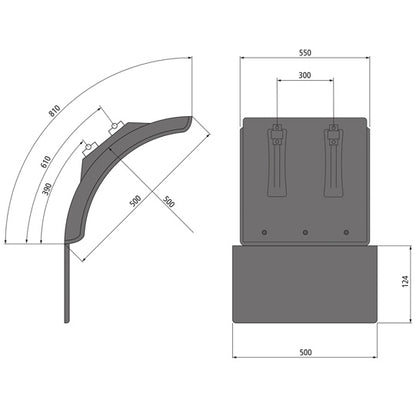

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions This item is not a stock item and is ordered on a customer commission basis. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 500.0
Console adjustment range 220.0
Length 810.0
Length splash guard 124.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 500.0
Splash guard Yes
Width 550.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
