Mudguard short (quarter) L-PE 55.740.08-IKK AS 217

Mudguard short (quarter) L-PE 55.740.08-IKK AS 217

181376034

⚖️ 3,8 kg

Login view prices

Description

Mudguard short (quarter) L-PE 55.740.08-IKK AS 217, with lamella splash guard system, polyethylene, black, integrated mudguard bracket infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 550 × 500 × 810 × 500 mm (w × r × l × s), splash guard 500 × 217 mm (w × l)

Notes

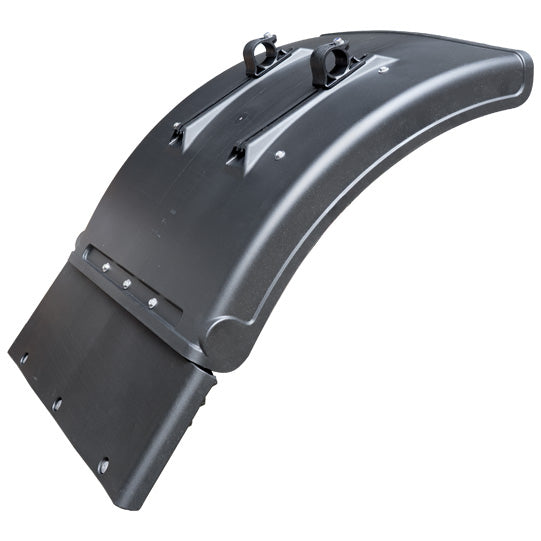

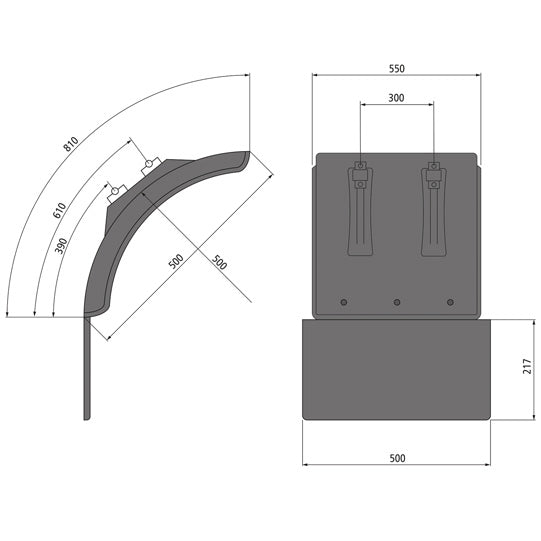

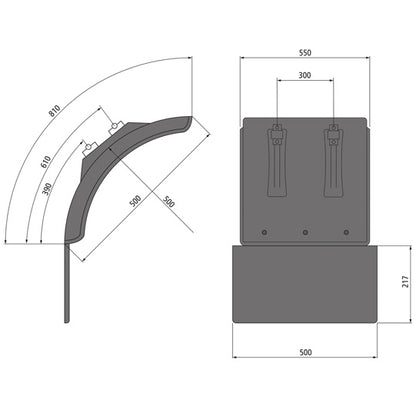

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 500.0
Console adjustment range 220.0
Length 810.0
Length splash guard 217.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Radius 500.0
Splash guard Yes
Width 550.0
