Mudguard short (quarter) L-PE 55.740.08-IKK SG, PP

Mudguard short (quarter) L-PE 55.740.08-IKK SG, PP

181378139

⚖️ 1,94 kg

Login view prices

Description

Mudguard short (quarter) L-PE 55.740.08-IKK SG, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. fastening clamps for pipe Ø 40 - 42 mm, 550 × 500 ×810 ×727 mm (w × r × l × s)

Notes

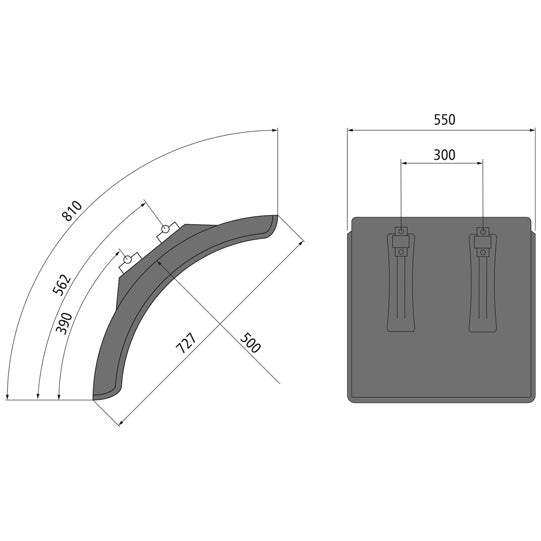

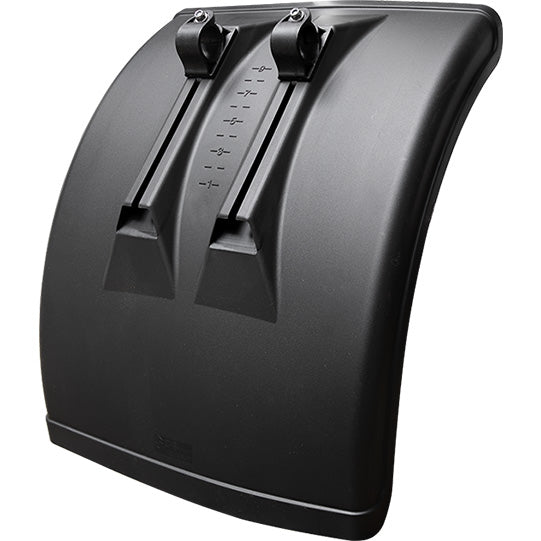

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 750.0
Console adjustment range 190.0
Height 516.0
Load tube diameter 40 - 42
Material PE (polyethylene)
Mounting hole pattern without
Mudguard console Yes
Splash guard No
Width 550.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
