Mudguards H2412/12, galvanised, 240 × 1210 × 390 × 375 × 750 mm

Mudguards H2412/12, galvanised, 240 × 1210 × 390 × 375 × 750 mm

132354013

⚖️ 3,1 kg

Login view prices

Description

Mudguard H 2412/12, sendzimir galvanised sheet steel, 240 ×1210 ×390 ×375 ×750 mm (w × l × h × r × s), for mounting on the side board, with mounting hole pattern

Notes

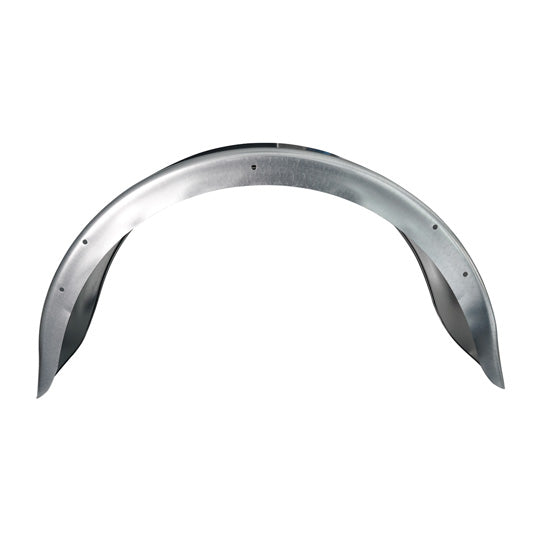

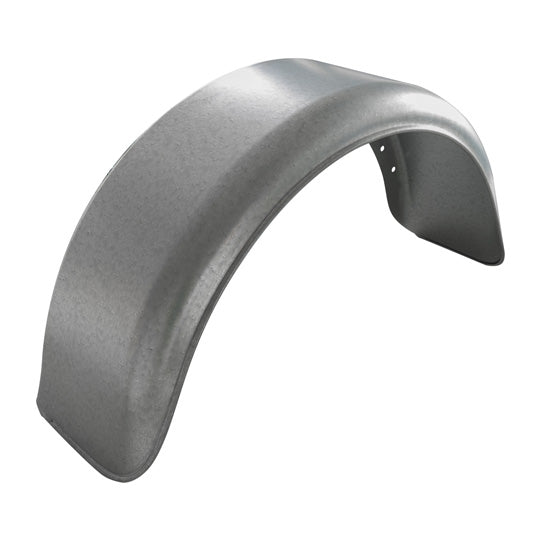

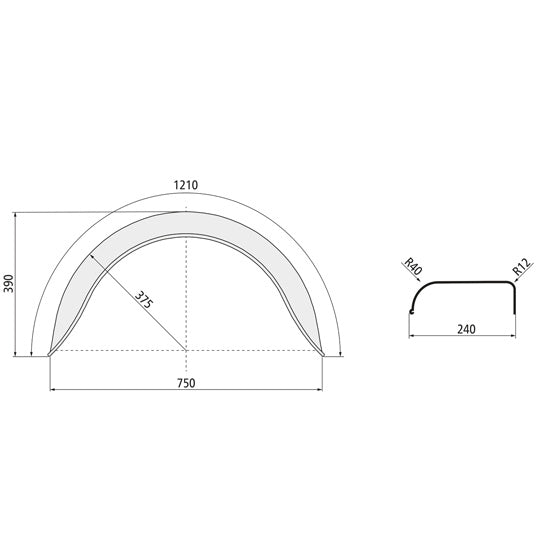

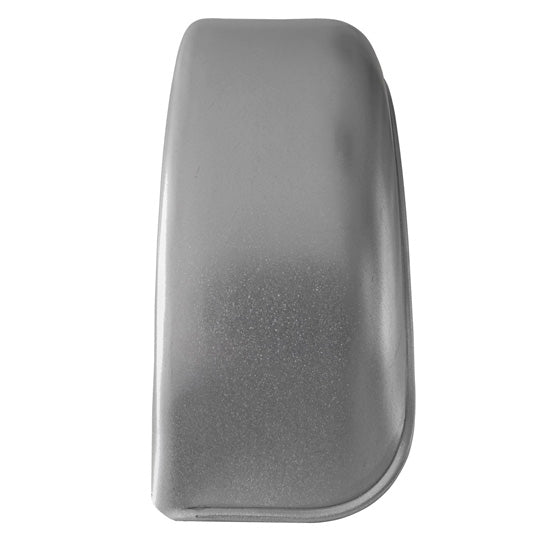

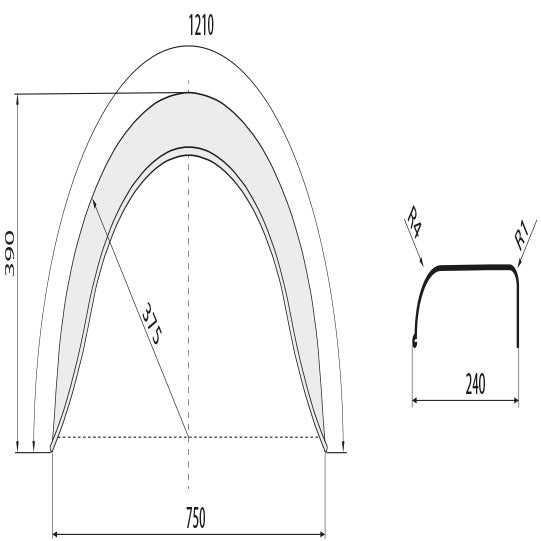

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 750.0
Height 390.0
Length 1210.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern with
Mudguard console No
Radius 375.0
Splash guard No
Surface Sendzimir galvanizing
Width 240.0
