Mudguards H2613/12, galvanised, 260 × 1285 × 415 × 400 × 800 mm

Mudguards H2613/12, galvanised, 260 × 1285 × 415 × 400 × 800 mm

132354018

⚖️ 3,5 kg

Login view prices

Description

Mudguard H 2613/12, sendzimir galvanised sheet steel, 260 ×1285 ×415 × 400 × 800 mm (w × l × h × r × s), for mounting on the side board, with mounting hole pattern

Notes

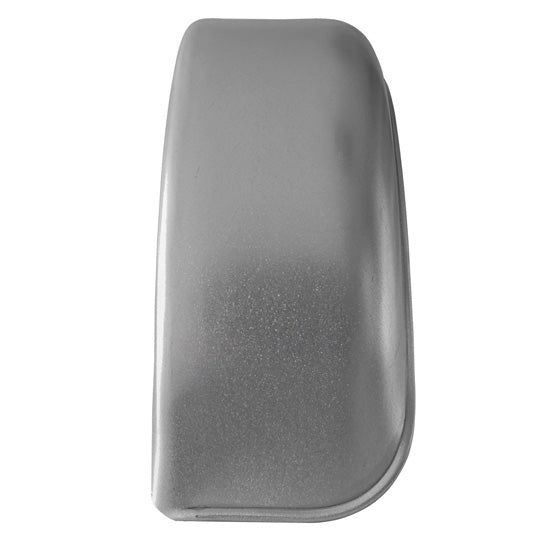

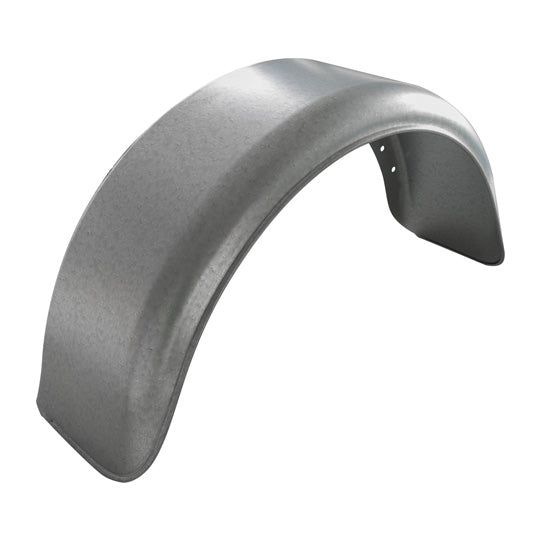

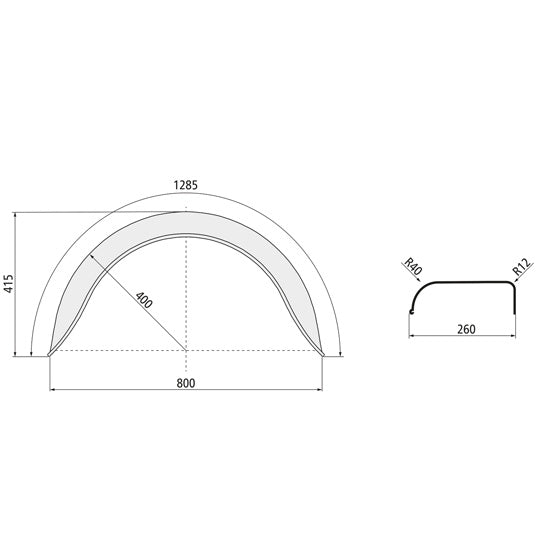

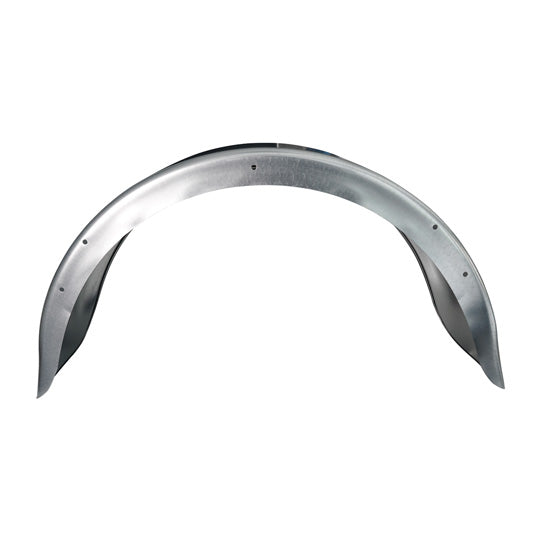

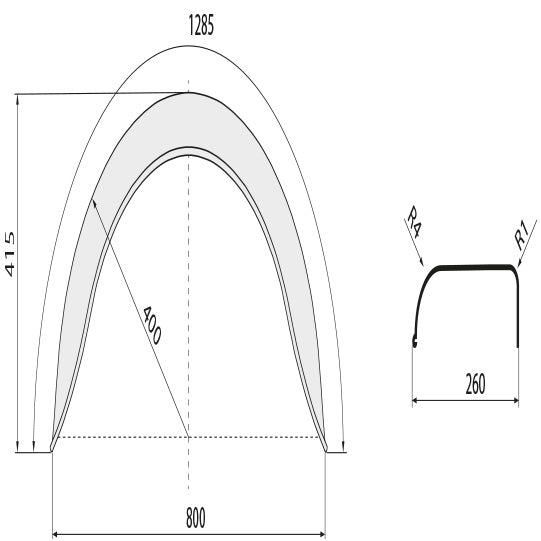

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 800.0
Height 415.0
Length 1285.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern with
Mudguard console No
Radius 400.0
Splash guard No
Surface Sendzimir galvanizing
Width 260.0
