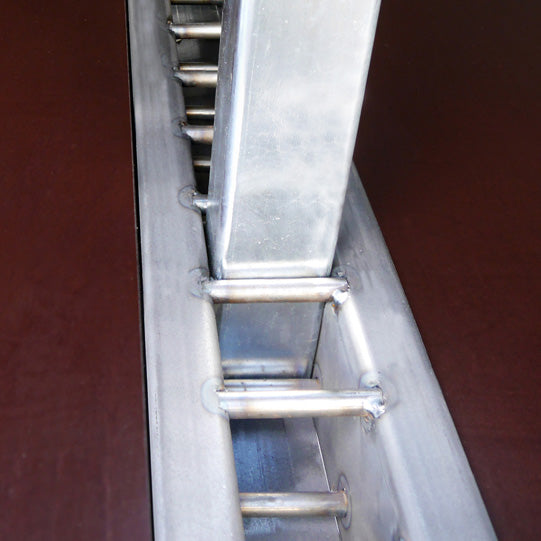

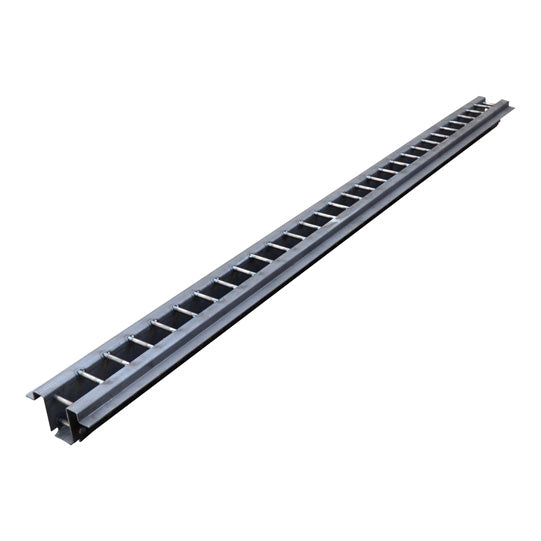

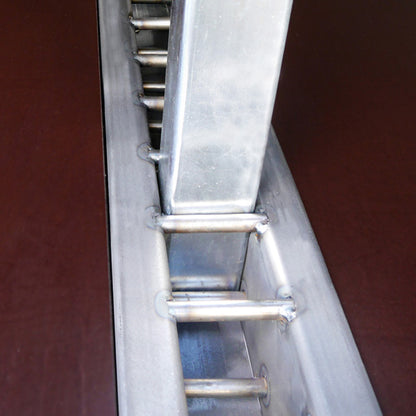

MultiFixx cross member Basic, raw steel, welded version

MultiFixx cross member Basic, raw steel, welded version

605646560

⚖️ 45,04 kg

Login view prices

Description

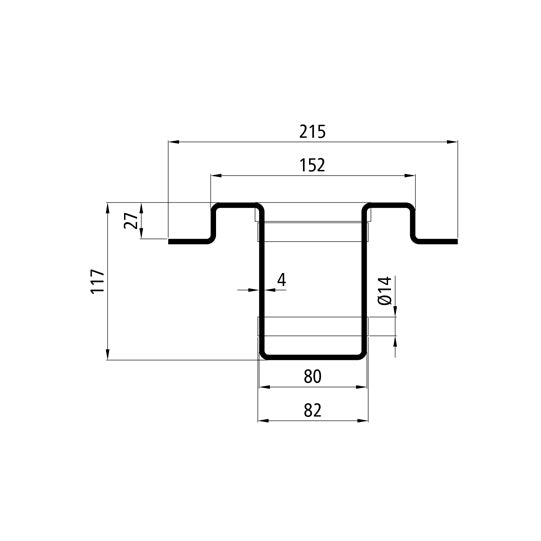

MultiFixx Basic cross member, raw steel, welded version, floor drop 27 mm, length 2542 mm, for floor frame outer width 2550 mm, with mounts for 70 x 70 mm pillars, drawing 08 204 164

Notes

When using floor frames with integrated lashing brackets or lashing eyes, a system platform is created in combination with the MultiFixx cross beams, which can be used to solve a wide variety of securing tasks.
MultiFixx cross beams and longitudinal beams are tested as lashing point stops in accordance with DIN EN 12640 and certified in combination with the SSP3 floor assembly in accordance with DIN EN 12642 XL.

Attributes

Height 117.0
Length 2542.0
Load capacity punkt 1 2000.0
Material Steel
Material thickness 4.0
Mounting method Welding assembly
Number of lashing points 30.0
Number of plug minus in stake receptacles 29.0
Surface Raw
Width 152.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
