Platf.m floor frame profile, S355MC, raw, 7300mm, 160x40x4 mm

Platf.m floor frame profile, S355MC, raw, 7300mm, 160x40x4 mm

372561439

⚖️ 71,438 kg

Login view prices

Description

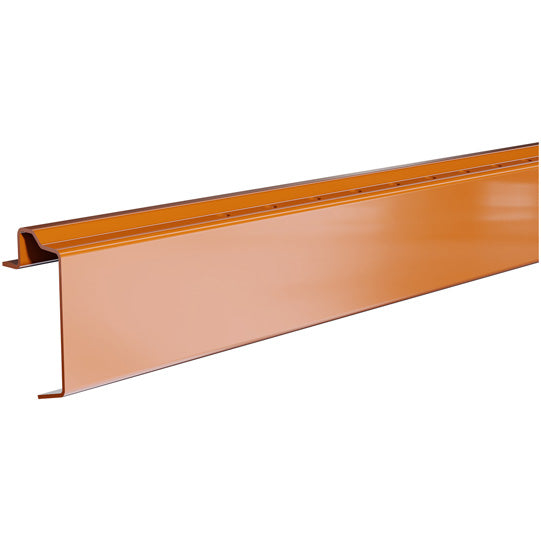

Platform floor frame profile, S355MC, untreated, cold-profiled, length 7300 mm, 160 x 40 x 4 mm, with hole pattern for lashing bracket 295132021

Notes

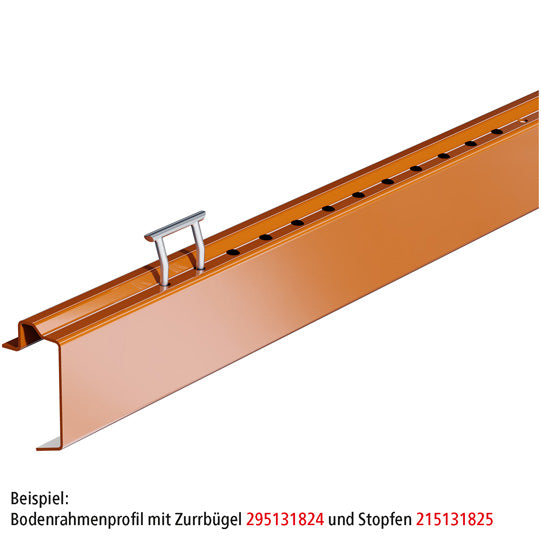

<SPAN>The floor frame profile is prepared for lashing brackets 295132021, with corresponding mounting holes at 75 mm intervals. The inserted lashing bracket does not protrude above the floor frame profile. No accumulation of water and dirt in the lashing bracket area, therefore no freezing of the lashing brackets under ice. Splash water protection for open lashing bracket mounting holes using a plug 215131825 (Ø 16 mm).<SPAN><SPAN></SPAN></SPAN></SPAN>

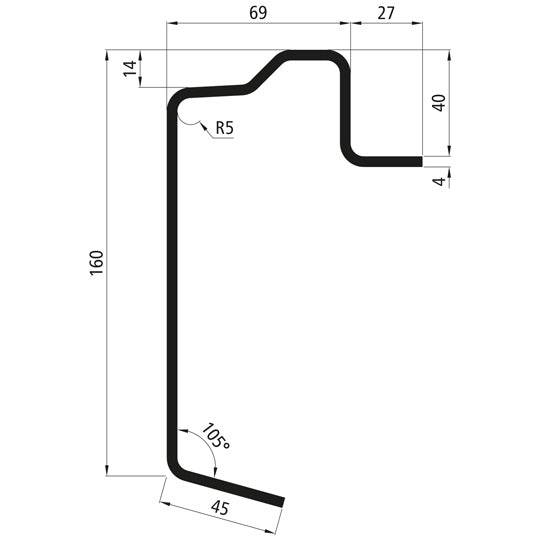

Attributes

Grade S355MC
Length 7300.0
Lowering 40.0
Material Steel
Material thickness 4.0
Profile height 160.0
Profile type Floor frame profile for lashing bracket
Profile width 96.0
Surface Raw
