Platform floor frame profile, S355MC, primed,7300mm,140x21x3mm

Platform floor frame profile, S355MC, primed,7300mm,140x21x3mm

373561436

⚖️ 48,62 kg

Login view prices

Description

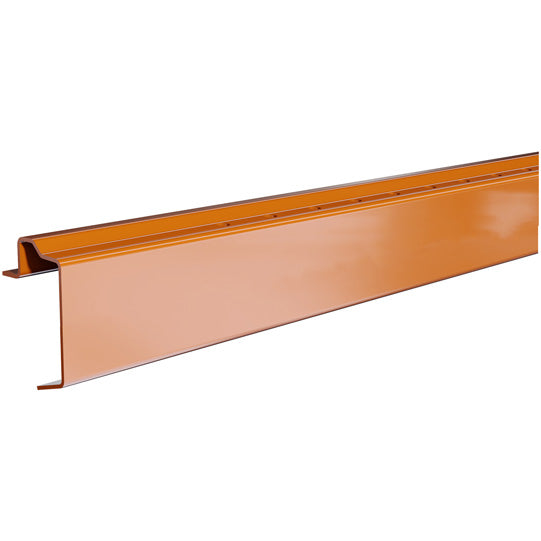

Platform floor frame profile, S355MC, sandblasted and primed, cold-profiled, length 7300 mm, 140 x 21 x 3 mm, with hole pattern for lashing bracket 295132021

Notes

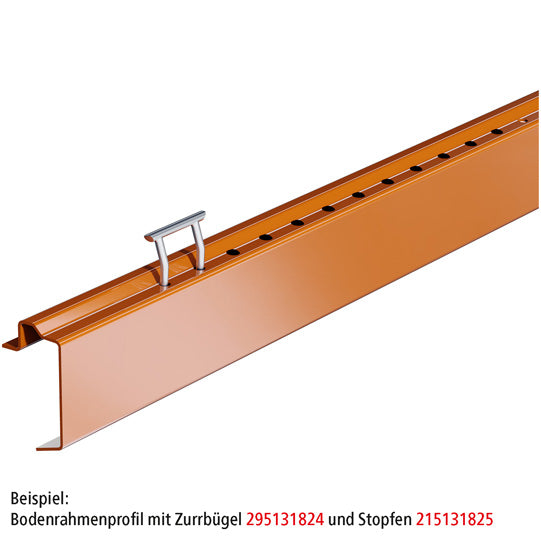

The floor frame profile is prepared for lashing brackets 295132021, with corresponding mounting holes at 75 mm intervals. The inserted lashing bracket does not protrude above the floor frame profile. No accumulation of water and dirt in the lashing bracket area, therefore no freezing of the lashing brackets under ice. Splash water protection for open lashing bracket mounting holes using a plug 215131825 (Ø 16 mm).

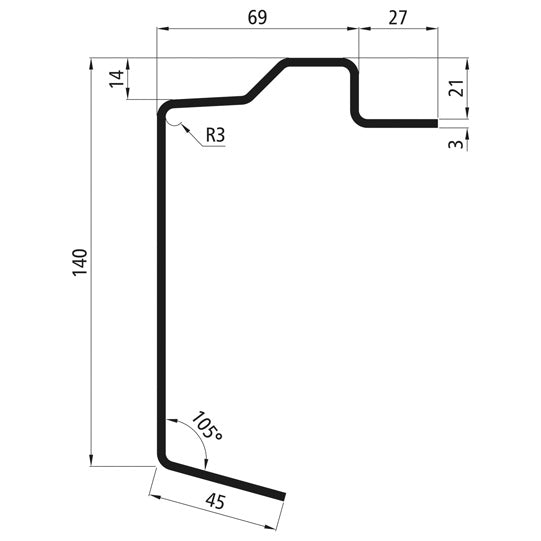

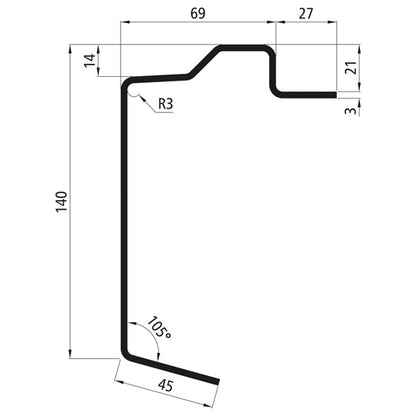

Attributes

Grade S355MC
Length 7300.0
Lowering 21.0
Material Steel
Material thickness 3.0
Profile height 140.0
Profile type Floor frame profile for lashing bracket
Profile width 96.0
Surface Sandblasted and primed

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
