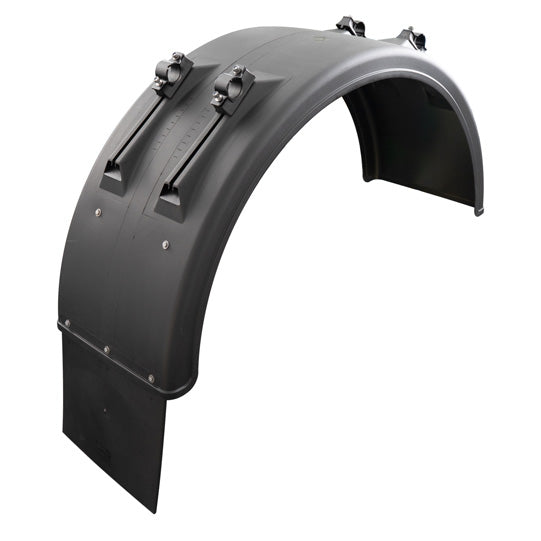

Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, polypropylene

Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, polypropylene

181378028

⚖️ 7,2 kg

Login view prices

Description

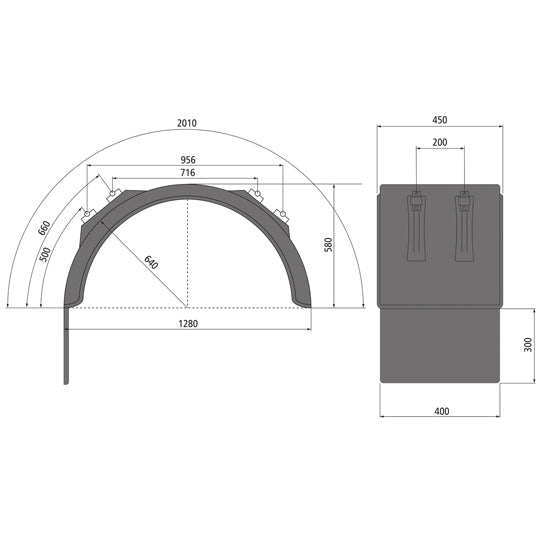

Rear mudguard H-PE 45.1280.20-IKK AS 300 SG, with softflow splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 450 × 640 × 2010 × 1280 × 640 mm (w × r × l × s × h), splash guard 400 × 300 mm (w × h)

Attributes

Clamping dimension 1280.0
Console adjustment range 160.0
Height 640.0
Length 2010.0
Length splash guard 300.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 640.0
Splash guard Yes
Width 450.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
