Rear mudguard H-PE 55.1060.17-IKK AS 217 SG, polypropylene

Rear mudguard H-PE 55.1060.17-IKK AS 217 SG, polypropylene

181378031

⚖️ 6,4 kg

Login view prices

Description

Rear mudguard H-PE 55.1060.17-IKK AS 217 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 550 × 530 × 1700 × 1060 × 555 mm (w × r × l × s × h), splash guard 520 × 217 mm (w × h)

Notes

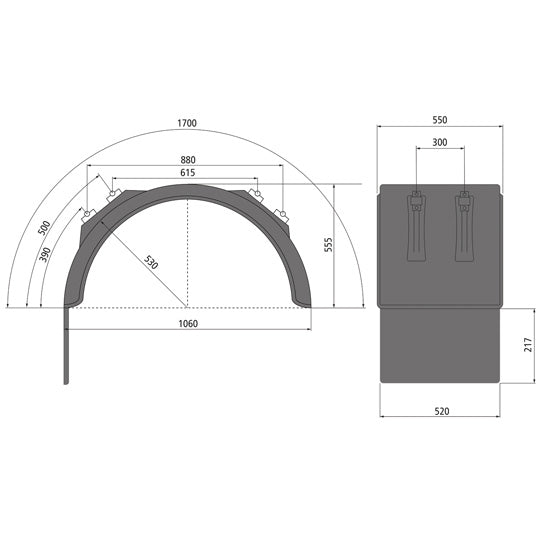

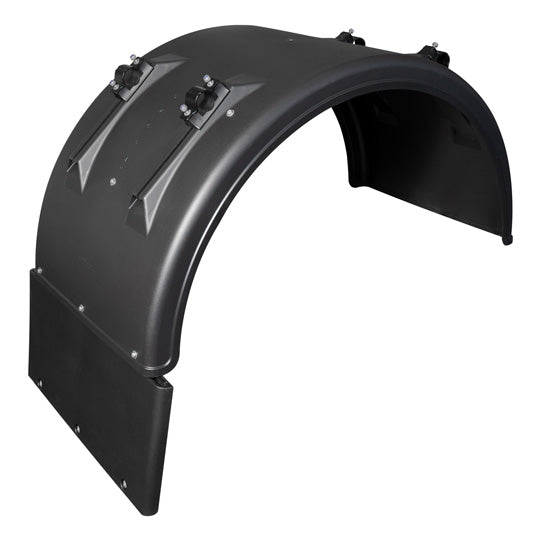

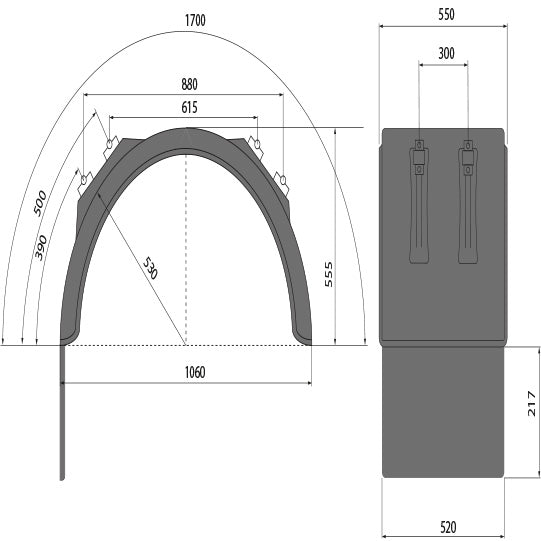

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1060.0
Console adjustment range 110.0
Height 555.0
Length 1700.0
Length splash guard 217.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 530.0
Splash guard Yes
Width 550.0
