Rear mudguard H-PE 65.1100.18-IKK AS 217 SG, polypropylene

Rear mudguard H-PE 65.1100.18-IKK AS 217 SG, polypropylene

181378035

⚖️ 8,3 kg

Login view prices

Description

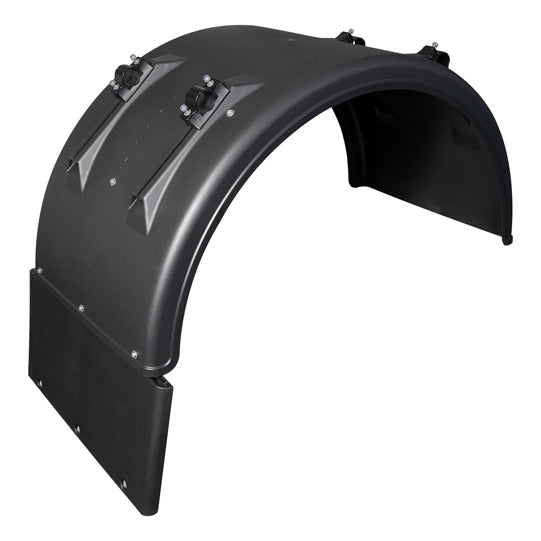

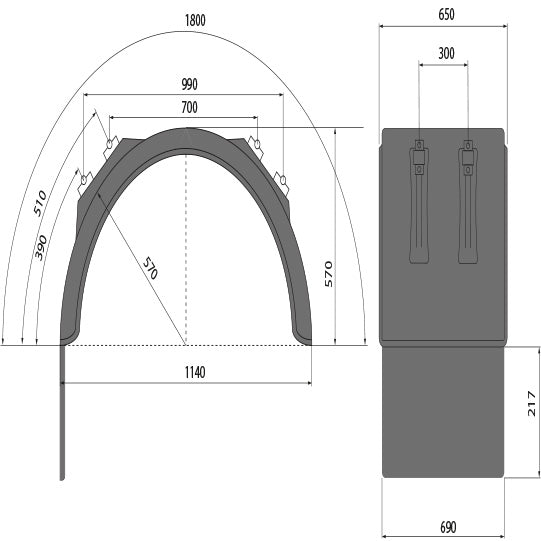

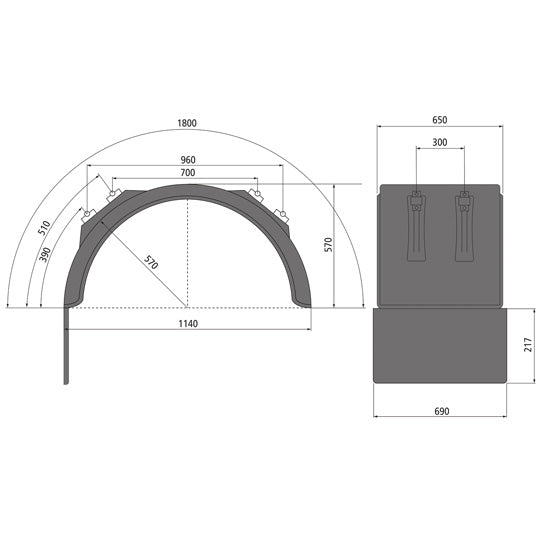

Rear mudguard H-PE 65.1100.18-IKK AS 217 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection-moulded, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for tube Ø 40 - 42 mm, 650 × 570 × 1800 × 1140 × 570 mm (w × r × l × s × h), splash guard 690 × 217 mm (w × h)

Notes

The scope of delivery does not include securing the locking lever. We recommend using a padlock.this item is not a stock item and is ordered on customer commission. The displayed price may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 1140.0
Console adjustment range 120.0
Height 570.0
Length 1800.0
Length splash guard 217.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 570.0
Splash guard Yes
Width 650.0
