Rear mudguard H-PE 65.1100.18-IKK AS 310 SG, polypropylene

Rear mudguard H-PE 65.1100.18-IKK AS 310 SG, polypropylene

181378036

⚖️ 8,6 kg

Login view prices

Description

Rear mudguard H-PE 65.1100.18-IKK AS 310 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 650 × 570 × 1800 × 1140 × 570 mm (w × r × l × s × h), splash guard 690 × 310 mm (w × h)

Notes

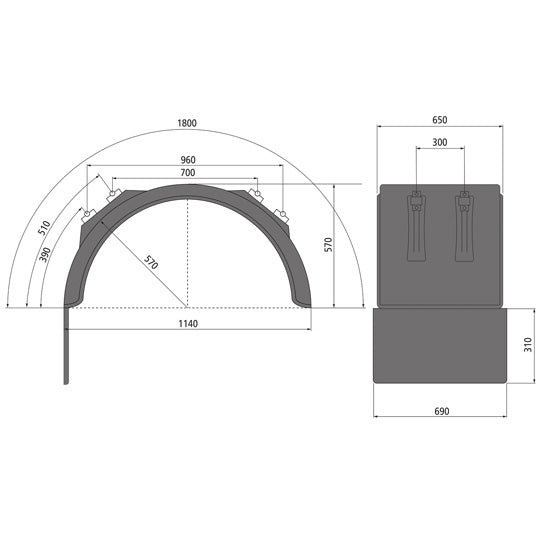

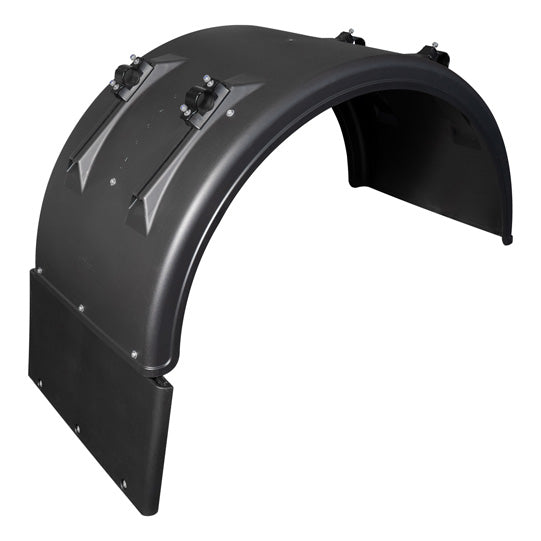

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1140.0
Console adjustment range 120.0
Height 570.0
Length 1800.0
Length splash guard 310.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 570.0
Splash guard Yes
Width 650.0
