Rear mudguard H-PE 65.1100.18-IKK AS 376 SG, polypropylene

Rear mudguard H-PE 65.1100.18-IKK AS 376 SG, polypropylene

181378037

⚖️ 9,0 kg

Login view prices

Description

Rear mudguard H-PE 65.1100.18-IKK AS 376 SG, with splash guard system (lamella structure), PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for tube Ø 40 - 42 mm, 650 × 570 × 1800 × 1140 × 570 mm (w × r × l × s × h), splash guard 690 × 376 mm (w × h)

Notes

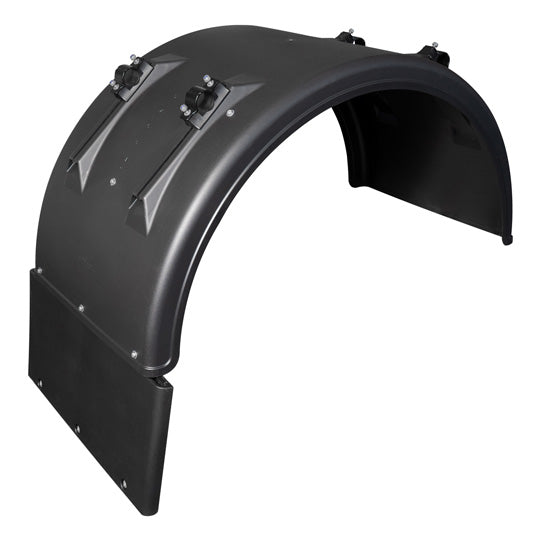

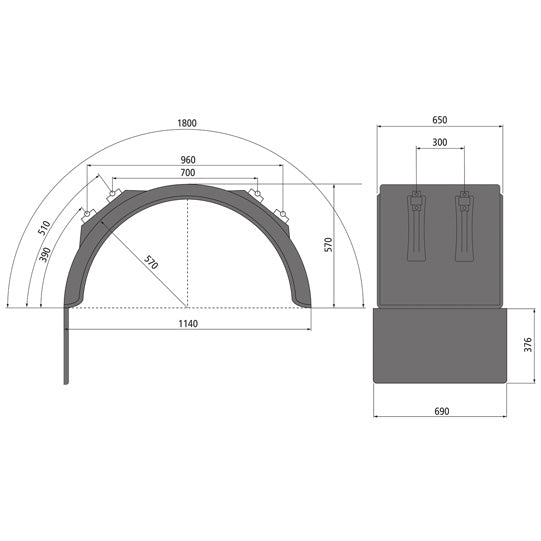

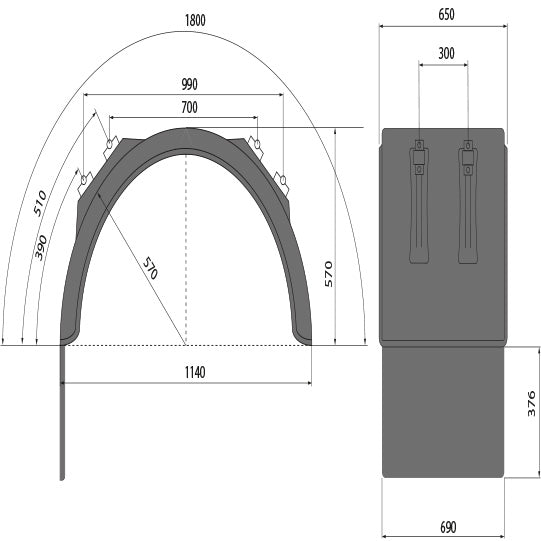

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1140.0
Console adjustment range 120.0
Height 570.0
Length 1800.0
Length splash guard 376.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 570.0
Splash guard Yes
Width 650.0
