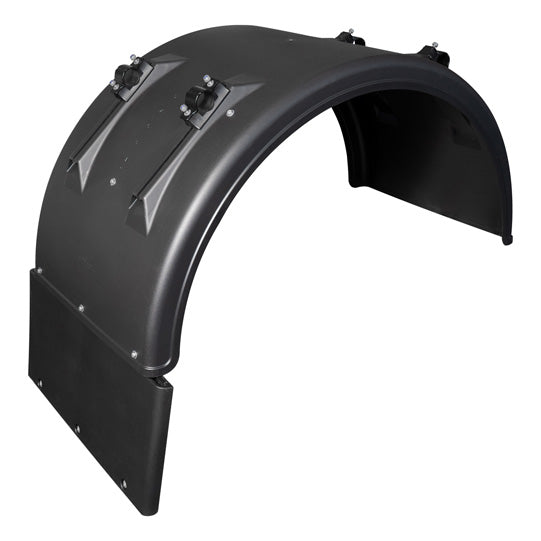

Rear mudguard H-PE 67.1380.21-IKK AS 217 SG, polypropylene

Rear mudguard H-PE 67.1380.21-IKK AS 217 SG, polypropylene

181378041

⚖️ 8,5 kg

Login view prices

Description

Rear mudguard H-PE 67.1380.21-IKK AS 217 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for pipe Ø 40 - 42 mm, 670 × 660 × 2100 × 1320 × 665 mm (w × r × l × s × h), splash guard 690 × 217 mm (w × h)

Notes

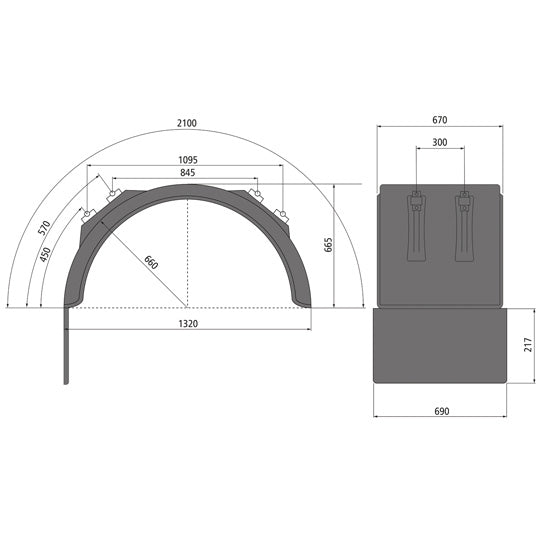

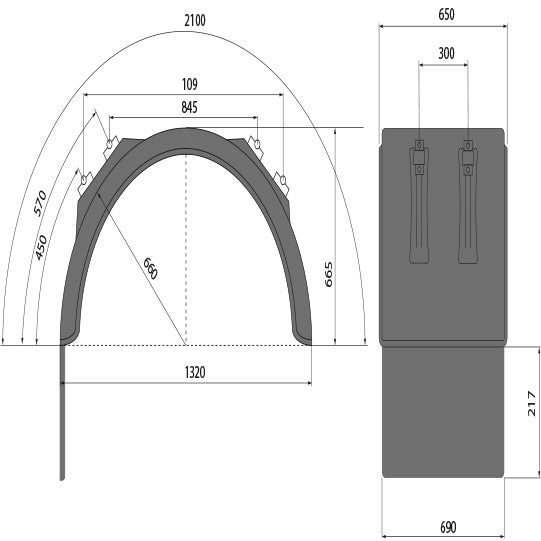

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions This item is not a stock item and is ordered on a customer commission basis. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 1320.0
Console adjustment range 120.0
Height 665.0
Length 2100.0
Length splash guard 217.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 660.0
Splash guard Yes
Width 670.0
