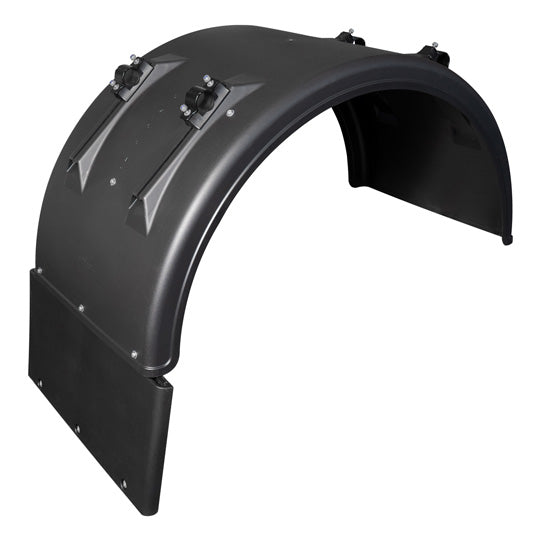

Rear mudguard H-PE 67.1380.21-IKK AS 376 SG, polypropylene

Rear mudguard H-PE 67.1380.21-IKK AS 376 SG, polypropylene

181378043

⚖️ 9,2 kg

Login view prices

Description

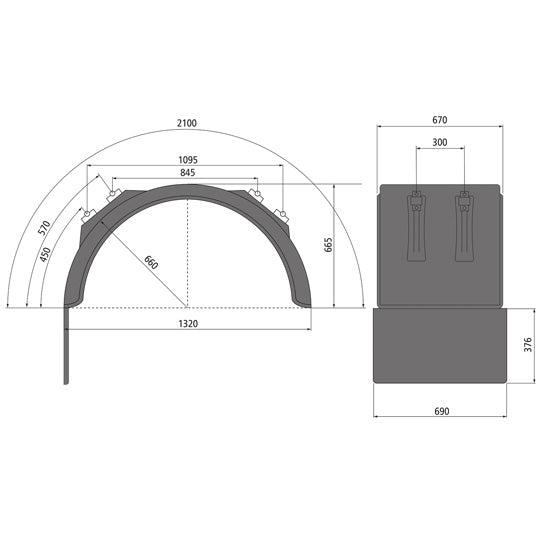

Rear mudguard H-PE 67.1380.21-IKK AS 376 SG, with lamella splash guard system, PP-EPDM (modified polypropylene), black, injection-moulded, integrated mudguard bracket, infinitely adjustable, incl. mounting clamps for tube Ø 40 - 42 mm, 670 × 660 × 2100 × 1320 × 665 mm (w × r × l × s × h), splash guard 690 × 376 mm (w × h)

Notes

The scope of delivery does not include securing the locking lever. We recommend using a padlock.this item is not a stock item and is ordered on customer commission. The displayed price may vary and will be communicated to you in the order confirmation.

Attributes

Clamping dimension 1320.0
Console adjustment range 120.0
Height 665.0
Length 2100.0
Length splash guard 376.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 660.0
Splash guard Yes
Width 670.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
