Rod anchor channel 3115-AL, w/ rubber sheath, 3000 mm

Rod anchor channel 3115-AL, w/ rubber sheath, 3000 mm

142138254

⚖️ 4,3 kg

Login view prices

Description

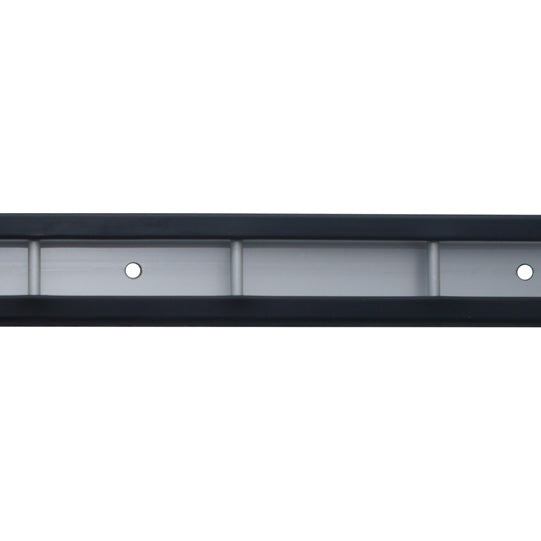

S-Line® rod anchor rail 3115-AL, aluminum anodised, with rubber coating and adhesive channel, for horizontal wall mounting, length 3000 mm, compatible with combination spigotØ 19/24 mm with slot 9 mm, all webbing straps up to 35 mm and lashing strap end fitting for rod anchor rail

Attributes

Adhesive channel Yes
Countersunk holes No
Installation area Horizontal wall
Lc value at 45 grad angle 850.0
Lc value at 90 grad angle 750.0
Length 3000.0
Material Aluminum
Surface Anodized

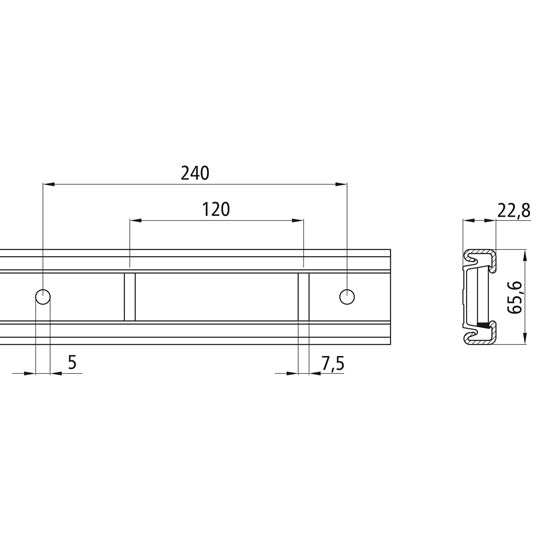

Width 66.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
