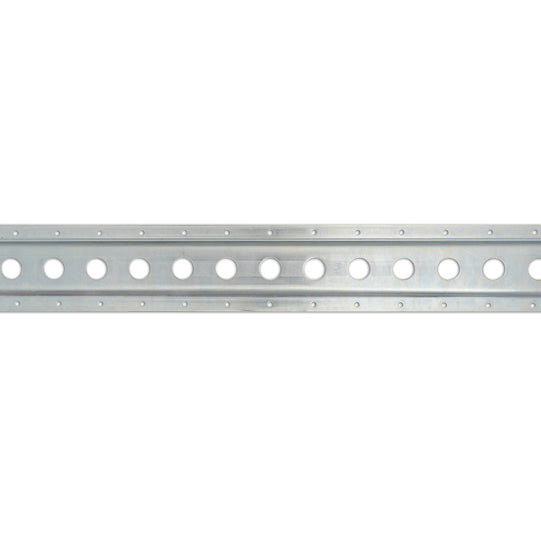

Round-hole anchor channel 1804, galvanised stl., 3048 mm

Round-hole anchor channel 1804, galvanised stl., 3048 mm

142138598

⚖️ 3,0 kg

Login view prices

Description

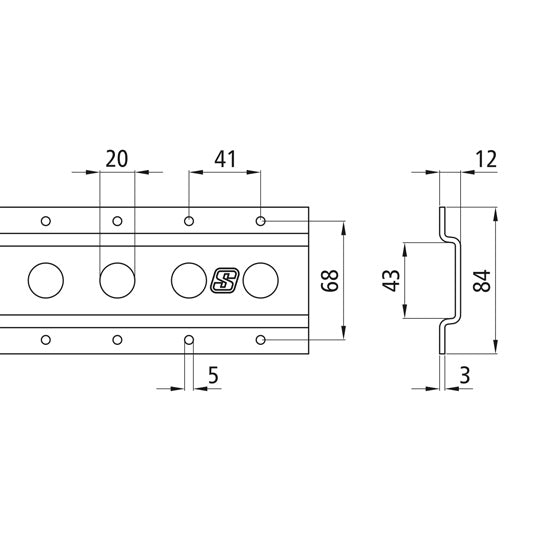

S-Line® round-hole anchor channel 1804, galvanised steel, for horizontal and vertical wall and ceiling mounting, length 3048 mm, compatible with combination spigot ø 19/24 mm

Attributes

Flat eyelet profile 0
Hole diameter 20.0
Installation area Vertical/horizontal wall - Ceiling
Lashing rail profile 0
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 3048.0
Material Steel
Material thickness 3.0
Profile with airline system 0
Side wall lifting aid 0
Surface Galvanized
Width 84.0
