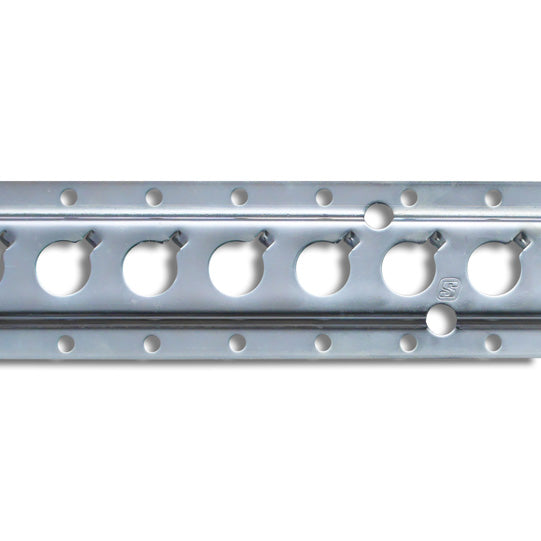

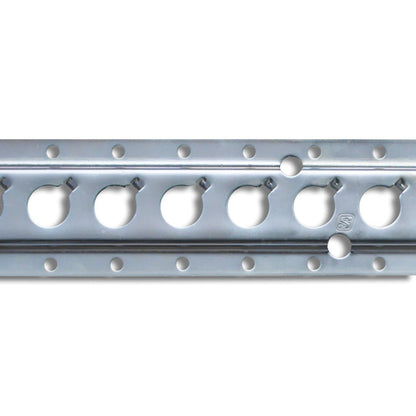

Round-hole anchor channel 1806, galvanised stl., 3000 mm

Round-hole anchor channel 1806, galvanised stl., 3000 mm

142138005

⚖️ 4,9 kg

Login view prices

Description

S-Line® round-hole anchor channel 1806, galvanised steel, with anti-rotation lock, for horizontal and vertical wall and ceiling mounting, length 3000 mm, compatible with combination spigot ø 19/24 mm, end fitting for round-hole lashing railØ 25 mm

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 25.0
Installation area Vertical/horizontal wall - Ceiling
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 3000.0
Material Steel
Material thickness 2.5
Surface Galvanized
Width 85.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
