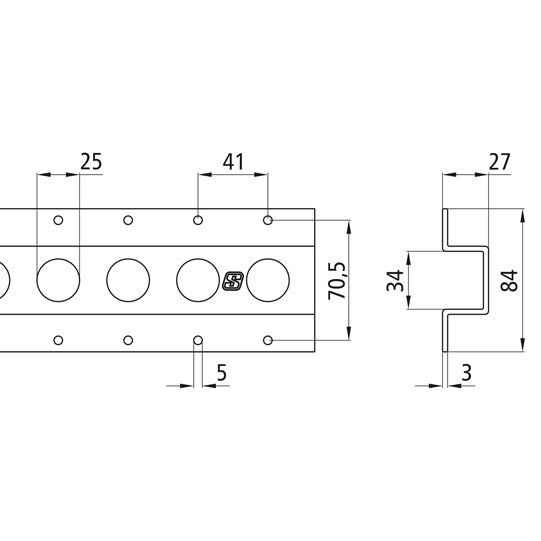

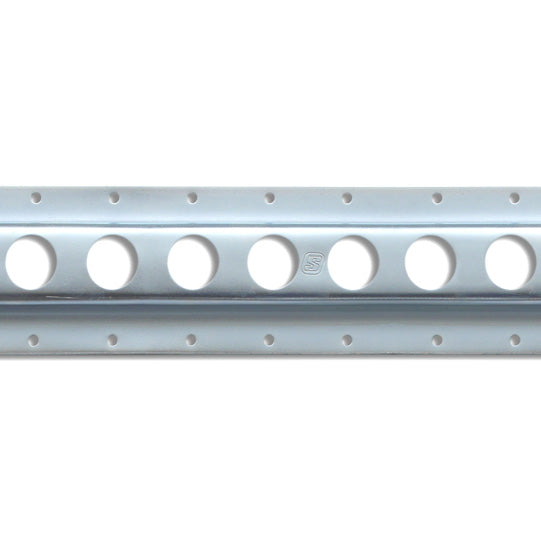

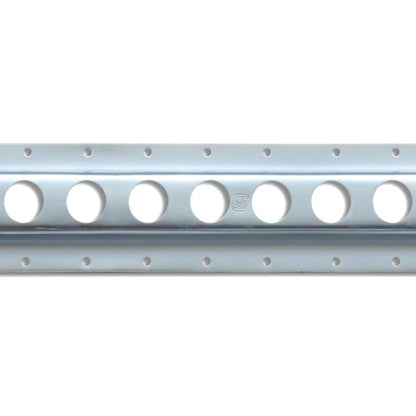

Round-hole anchor channel 3011, galvanised stl., 2993 mm

Round-hole anchor channel 3011, galvanised stl., 2993 mm

142138028

⚖️ 7,8 kg

Login view prices

Description

S-Line® round-hole anchor channel 3011, galvanised steel, for floor and ceiling mounting, length 2993 mm, compatible with combination spigotØ 19/24 mm

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 25.0
Installation area Floor - Ceiling
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 2993.0
Material Steel
Material thickness 3.0
Surface Galvanized
Width 84.0
