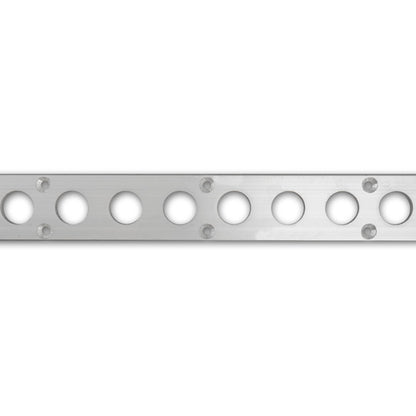

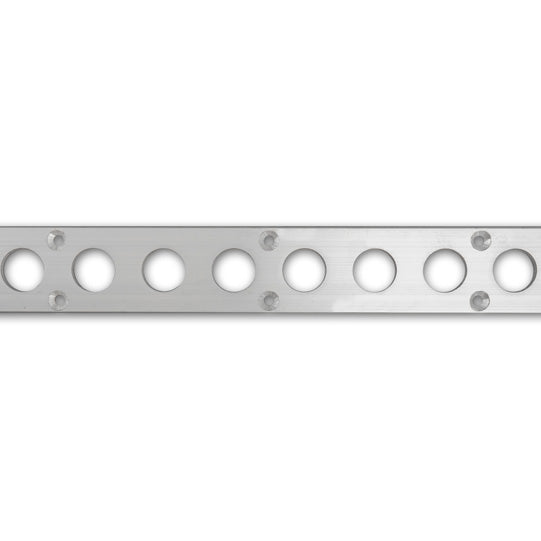

Round-hole anchor rail 3004-AL, aluminum anodised, 2990 mm

Round-hole anchor rail 3004-AL, aluminum anodised, 2990 mm

142138951

⚖️ 1,8 kg

Login view prices

Description

S-Line® round-hole anchor channel 3004-AL, aluminum anodised, for floor mounting, length 2990 mm, compatible with combination spigot Ø 19/24 mm

Attributes

Adhesive channel No
Countersunk holes Yes
Flat eyelet profile 0
Hole diameter 25.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 2990.0
Material Aluminum
Material thickness 6.0
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 50.0
