Rubber spring axle GFA 1350 - 5/67/112, with brake, 1800 mm AM

Rubber spring axle GFA 1350 - 5/67/112, with brake, 1800 mm AM

120318062

⚖️ 58,1 kg

Login view prices

Description

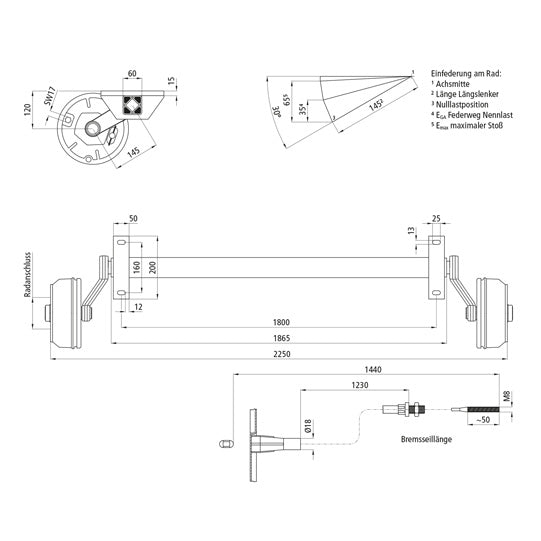

Rubber spring axle GFA 1350 - 5/67/112with wheel brake 200 x 50 RAK (20-2425/1), 1800 mm support dimension, 2250 mm flange, permissible axle load 1350 kg, permissible offset ET 26 - ET 40, support bracket angle galvanized inwards, speed up to 140 km/h, hot-dip galvanized axle beam, maintenance-free wheel bearings

Attributes

Brake Yes
Flange dimension 2250.0
Perm punkt axle load 1350.0
