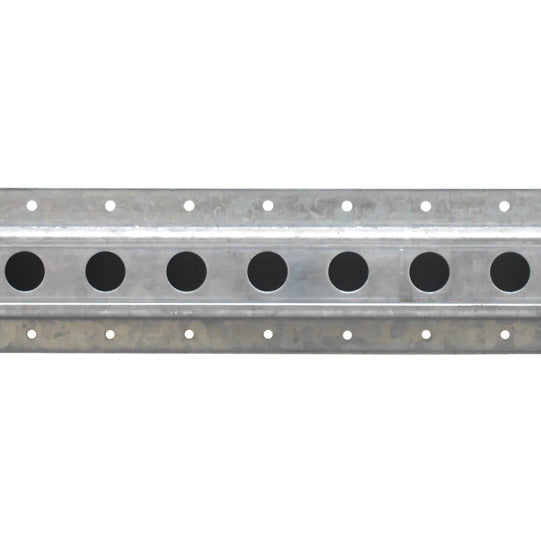

S-Line® round-hole anchor channel 3010-GS, galvanised stl., 777

S-Line® round-hole anchor channel 3010-GS, galvanised stl., 777

142138611

⚖️ 23,3 kg

Login view prices

Description

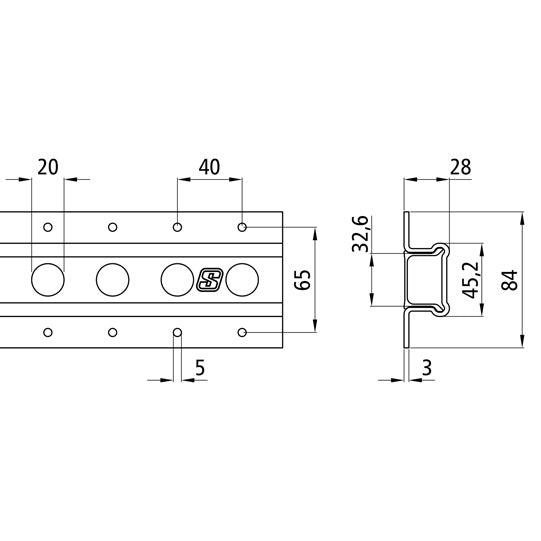

S-Line® round-hole anchor rail 3010-GS, galvanised steel with plastic insert, for floor mounting, length 7770 mm, compatible with combination spigot Ø19/24 mm and drink barrier beam

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 20.0
Installation area Floor
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 7770.0
Material Steel
Material thickness 3.0
Surface Galvanized
Width 84.0
